Screw -  MS Series
Screw - Pattern 104 - "Plessey"
Screw - 10H series
Bayonet - Pattern 105
Pattern 104 - Plessey Mk4 and Mk7



 Amphenol
Belling Lee
Burndy
Cannon
Plessey
Films and Equipment
Thorn



Note that many items are now between 30 and 70 years old.

Some tarnishing of contacts or storage marks may have occurred.  I can advise on the detailed condition of specific items on request

Unless otherwise stated, the free connectors are the head units only.



Cat No.

Click Pics
for larger View

Description

Condition

Price

GBP
Multi-way Circular
SCREW - MS Series   MIL-C-5015 Threaded
For Mechanical data on the MS 3102A  panel box series see pdf    HERE

2 to 3 Ways

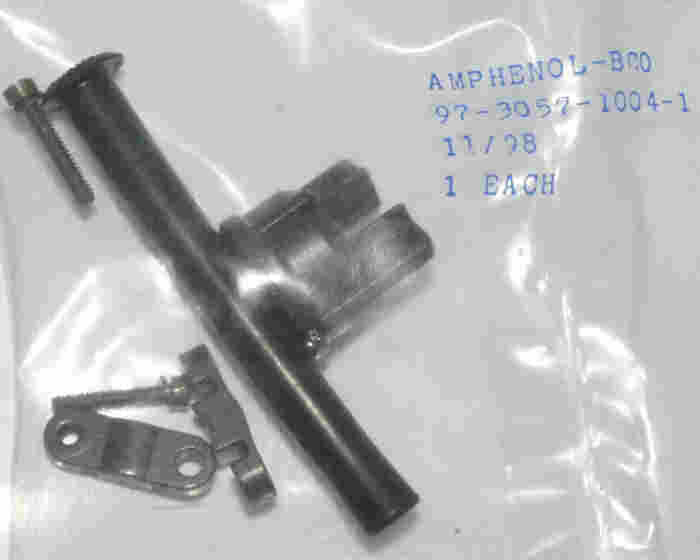

CON4204 Cable Clamp and sleeve - Size 10.   Amphenol 97-3057-1004-1   RS 475-937 Old Stock 4.50

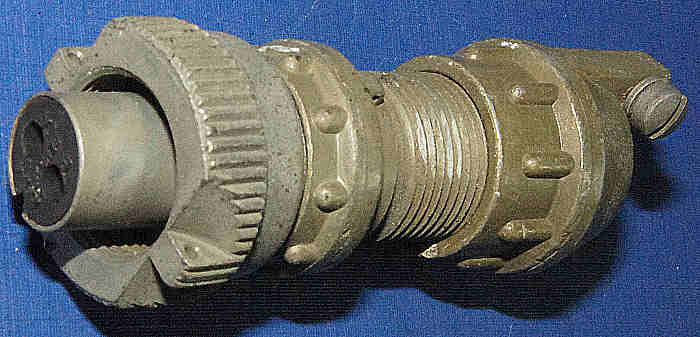

CON4215 2 way Free Plug, Female Contacts. 10SL-4S Old Stock 5.10
CON4219 2 way Fixed receptacle, Female Contacts 3102A-14S-9S Used 2.50
CON4231 . 3 way Fixed Receptacle, Male Contacts 10SL-3P.  RS 475-690 Old Stock 3.50
CON4233 . 3 way Free Plug, Female Contacts   RS 475-820 or equivalent 10SL-3S Used 4.50

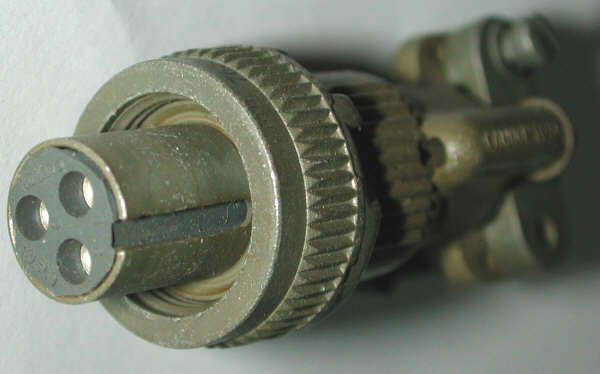

CON4234 3 way Free Plug, Female Contacts  Canon MS3106E-10SL-3S  RS 475-820
see CON4204 for clamp assembly		 Old Stock 6.50
CON4238 . 3 way Free Plug, Male Contacts  Canon MS3106E-10SL-3P
see CON4204  for clamp assembly		 Old Stock 6.50

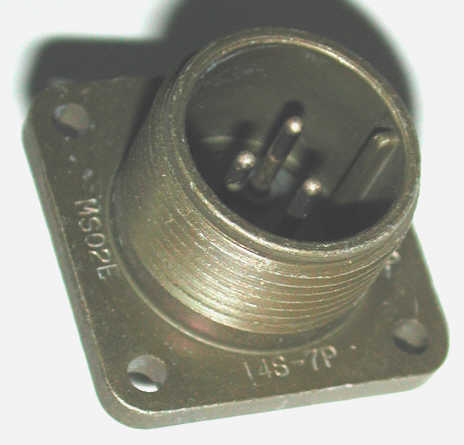

CON4241 3 way Fixed Receptacle, Male Contacts   MS3102E-14S-7P. Old Stock 4.50

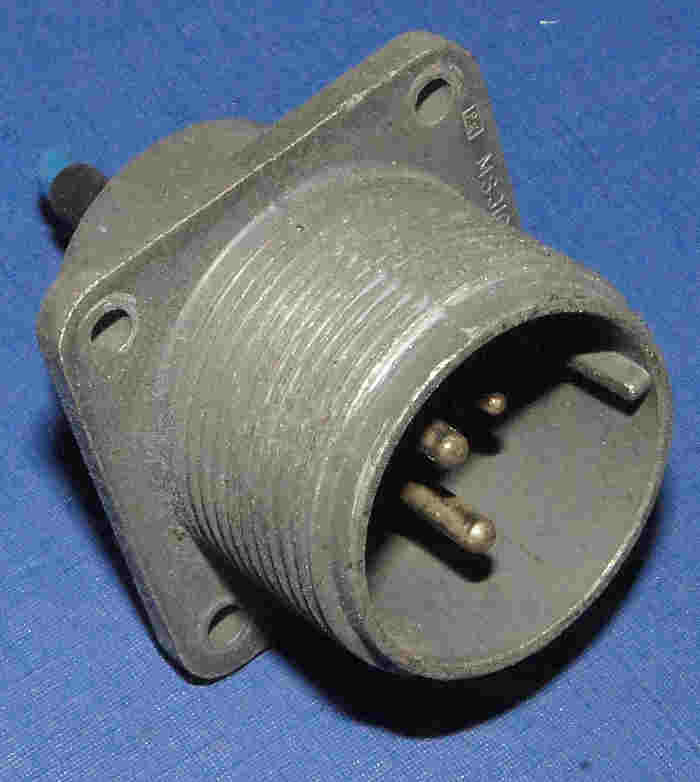

CON4241 3 way Fixed Receptacle, Male Contacts   MS3102A-18-5P. Used 3.70
4 to 6 Ways

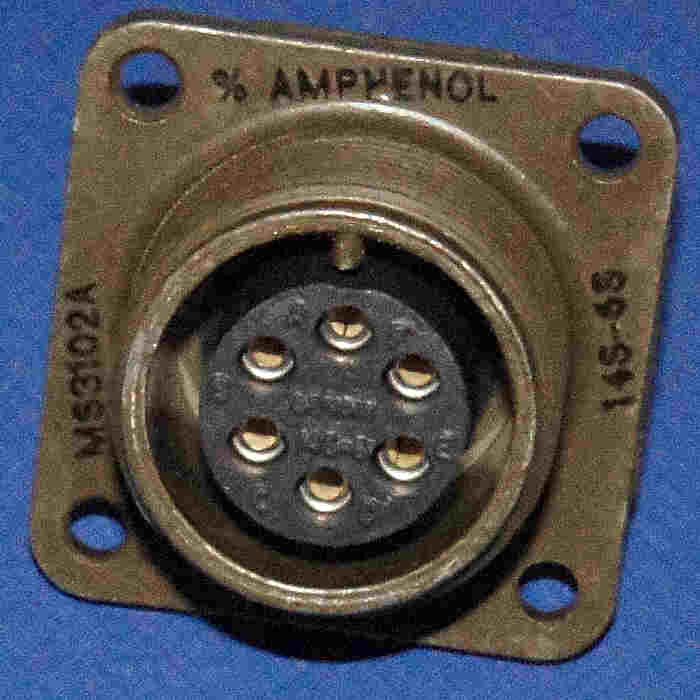

CON4255 . 4 way Coupler/Cable Receptacle, Male Contacts   MS3101-14-2P style. Cannon Old Stock 6.50
CON4256 . 4 way Coupler/Cable Receptacle, Female Contacts   MS3101-14-2S style. Cannon Old Stock 6.50

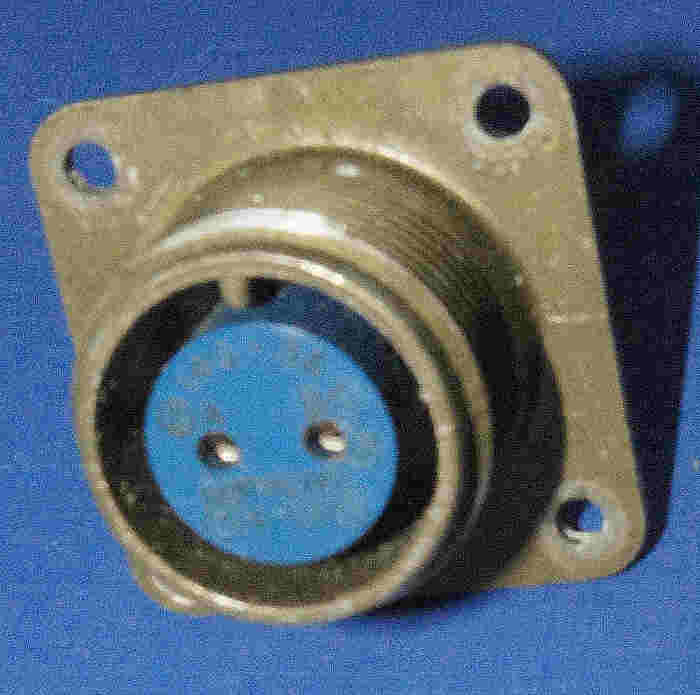

CON4258 . 4 way Fixed Receptacle, Female Contacts   MS3102A-14S-2SF Used 2.50
CON4262 . 4 way Free Plug, Female Contacts   MS3106E-14S-2S Used 3.50
CON4266 . 5 way Coupler/Cable Receptacle, Male Contacts   MS3101-14-5P style. Cannon Old Stock 6.50
CON4267 . 5 way Free Plug, Female Contacts   MS3106E-14S-5S Used 3.50
CON4271 6 way Fixed Receptacle, Male Contacts   MS3102E-14S-6P Cannon Old Stock 6.50
CON4272 6 way Fixed Receptacle, Female Contacts   MS3102A-14S-6S Amphenol RS475=729 Used 4.40

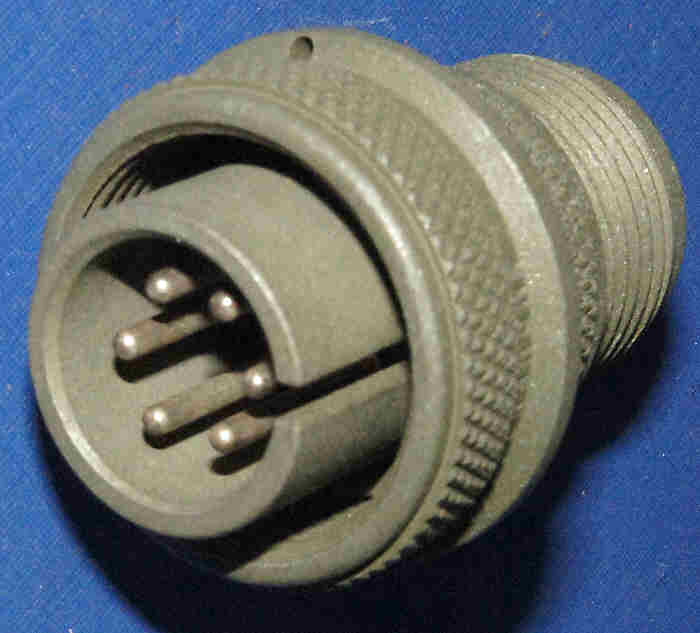

CON4275 6 way Free Plug, Male Contacts   MS3106-14S-6P style RS 475-836 Old Stock

Used		 6.50

4.20
CON4276 6 way Free Plug, Female Contacts   MS3106-14S-6S Old Stock 6.50
7 to 10 Ways
CON4281 7 way Fixed Receptacle, Male Contacts   MS3102E-16S-1P Amphenol Used 2.75

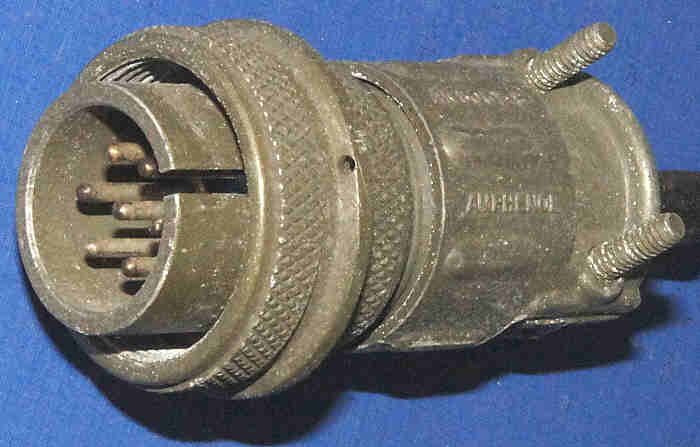

CON4283 7 way Free Plug, Male Contacts   MS3106-14S-1P style Used 3.75

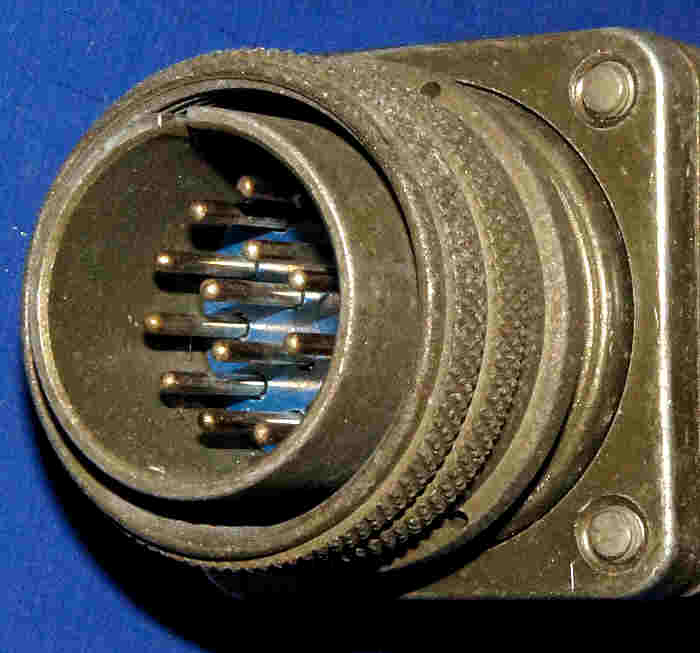

CON4288 10 way Free Plug, Male Contacts   MS3106E-18-1P  Cannon Old Stock 10.50
CON4288U 10 way Free Plug, Male Contacts   MS3106-18S-1P style Used 5.75
11+Ways

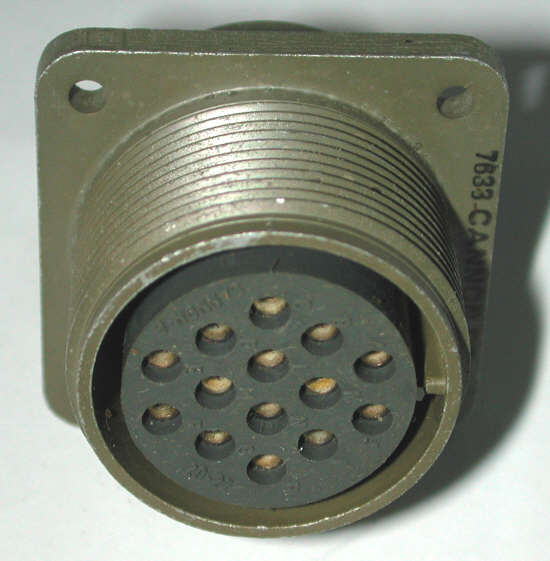

CON4292 14 way Fixed Socket, Female Contacts MS3102E-20-27S
38mm square flange, Holes 29mm centres.		 Old Stock
 8.50

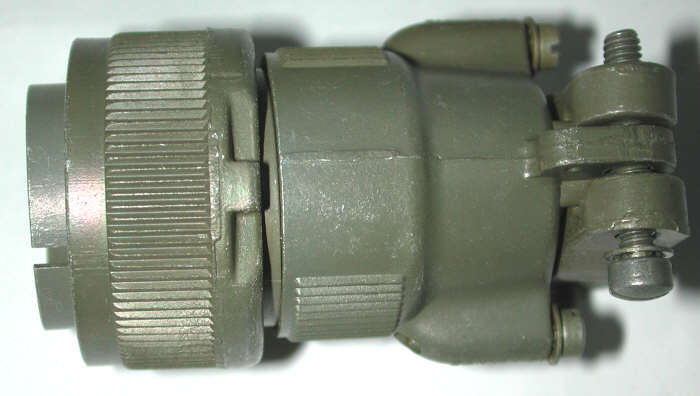

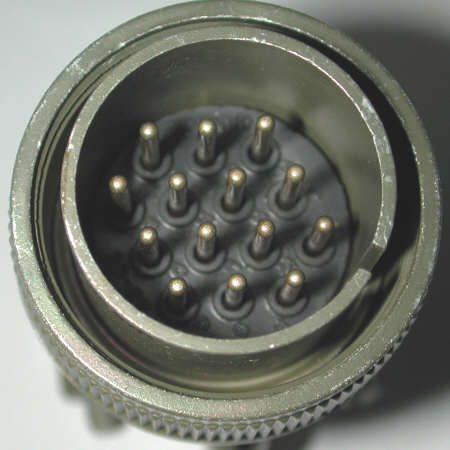

CON4293   14 way Free Plug, Male Contacts  MS3106E-20-27P Cannon
Part JC-R0-23726   Sealed bags.   37mm diameter, 68mm long overall.
 Old Stock
 10.50
CON4295 17 way Free Plug, Male Contacts  MS3106-20-29P Used 7.75
CON4297 19 way Fixed Socket, Female Contacts MS3102E-22-14S Used 7.75
CON4299 28 way Free Plug, Female Contacts  MS3106-28-12S  Head only Old Stock 8.50

CON4311 . 10 way Fixed Plug, Cannon K03-16-10SN  JC S0B 44403
Unused in sealed bags with protectors		 Old Stock 10.50
CON4313 . 19 way Fixed Plug, Cannon K03-19-20SN  JC S0B 41480
Unused in sealed bags with protectors		 Old Stock 10.50
Miniature MS Style - Pattern 165

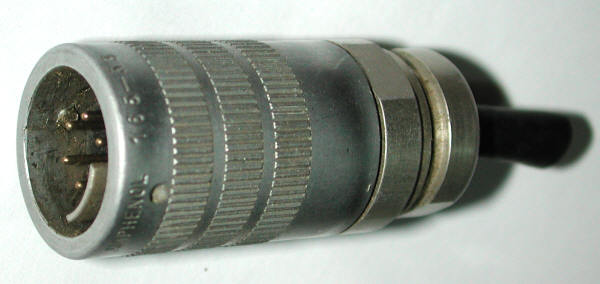

CON4355 Amphenol Miniature MS series 165.
5 way Free Socket, male gold-plated contacts,165-33.
Rated 7.5A per contact, 600V rms. 		Used 2.90
BAYONET Style
 BAYONET Style - Pattern 105,  to MIL-C-26482, DEF 5325-3  etc.

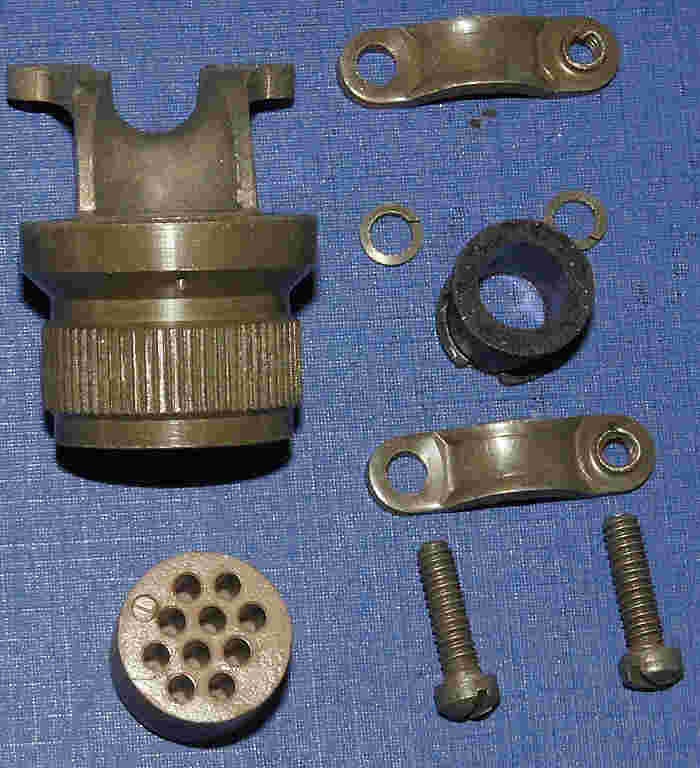

CON4405 Accessory - Size 12  Hood Seal and Right Angle Clamp Assembly 62GB-711-12-10S.  Sealed packets.
Also suits others in series if multi-way sealing grommet is not essential.
 New old stock 2.70
2 to 5 Ways

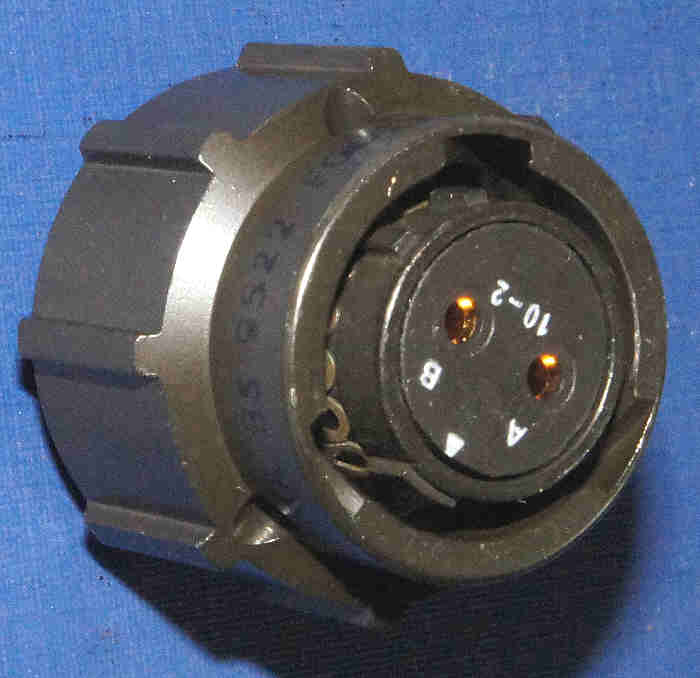

CON4412 2 way Fixed Plug.  10-2P Style. Thorn  PT07A-10-02P Unused 6.50
CON4415 2 way Free Socket.  10-2S Style.  Amphenol BS 9522 - FOO17-C2095-10-02FNO
One only		 Unused 7.50

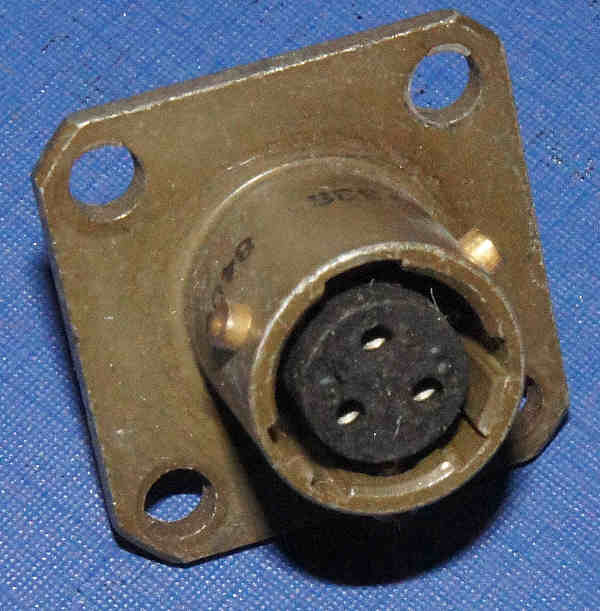

CON4422 3 way Fixed Socket.  8-3S Style.  Amphenol 62GB-50T8-3S.  Thorn TEE PT02-8-33S
 Unused 3.50

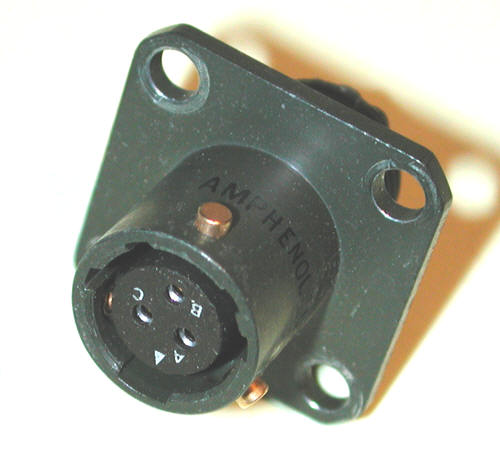

CON4423 3 way Fixed Socket.  8-3S Style.   Amphenol 62GB-50T8-3S 9113C,  TEE PT02-8-33S  etc.
Used, clean. 21mm square flange. Holes on 15mm approx centres.		 Used 2.40
CON4424 3 way Free Plug.  8-3P Style. 06EC-8-3P Unused 6.50
CON4427 . 3 way Free Socket.  12-3S Style. Amphenol 62GB-16F12-3SY
With accessory pack - short hood, seal and clamp		 Unused 6.50

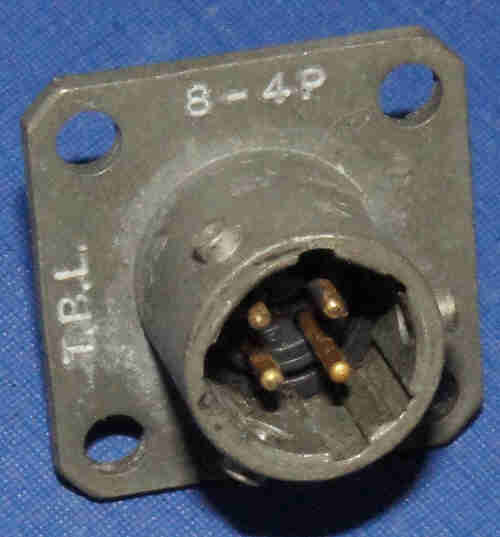

CON4432 4 way Fixed Plug.  8-4P Style. PT02-8-4P Unused 5.50
6 Ways

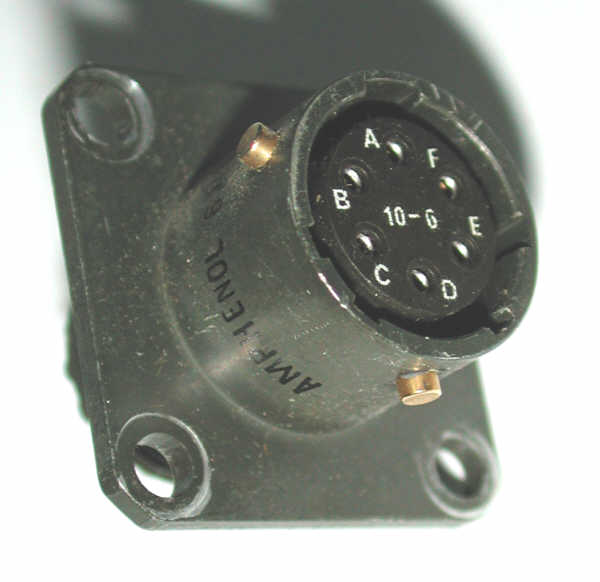

CON4461 6 way fixed Socket. 62GB_50T10-6S or equivalent.
24mm square flange, holes on 18mm approx centres.		 New old stock 5.70
CON4462 6 way fixed Socket. 62GB_50T10-6S or equivalent.
Used Clean. 24mm square flange, holes on 18mm approx centres.		 Used 2.10

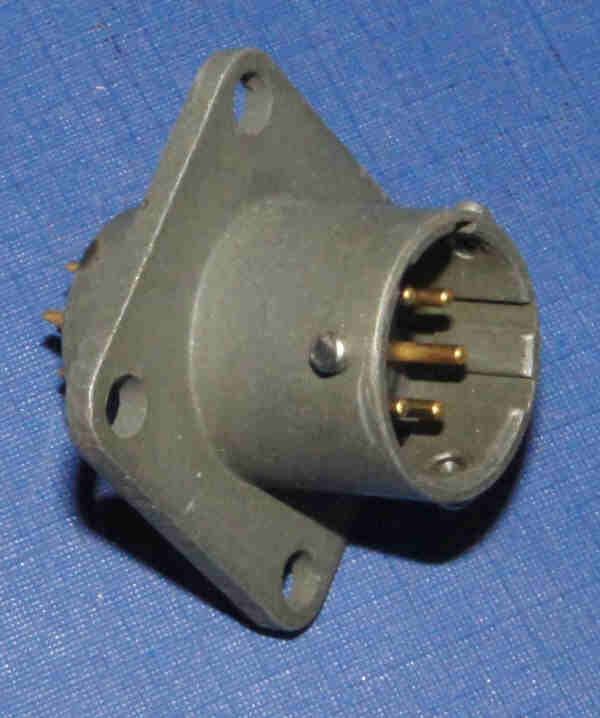

CON4463 6 way fixed Plug. KPT02E-10-6P.
One only		 New old stock 5.70

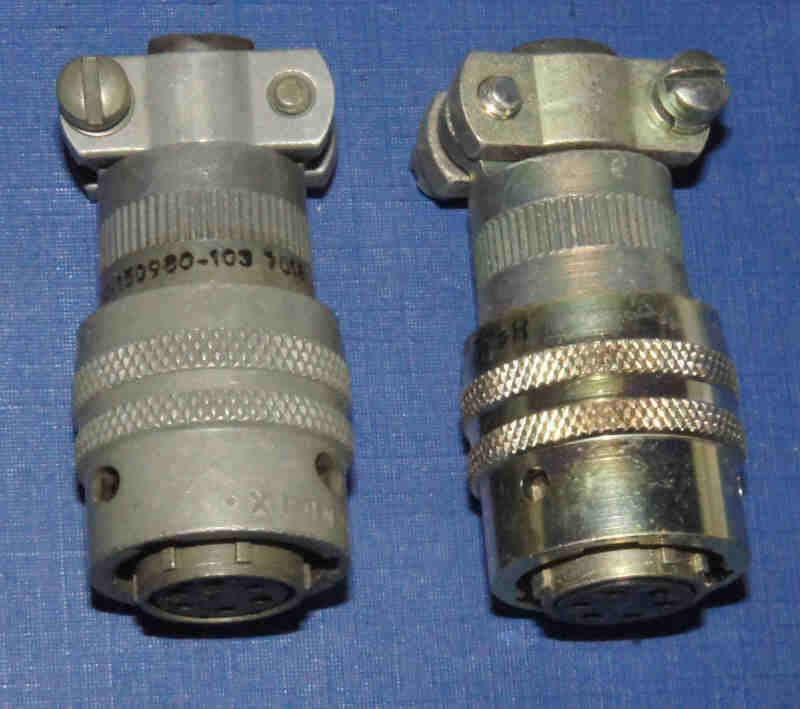

CON4464 6 way free Socket. 10-6S  RS 466-624 or GEC NB206106S
With hood and clamp		 New old stock 9.70
CON4465 6 way free Socket. 10-6S  RS 466-624 or GEC NB206106S
With hood and clamp		 Used 2.80
8-10  Ways

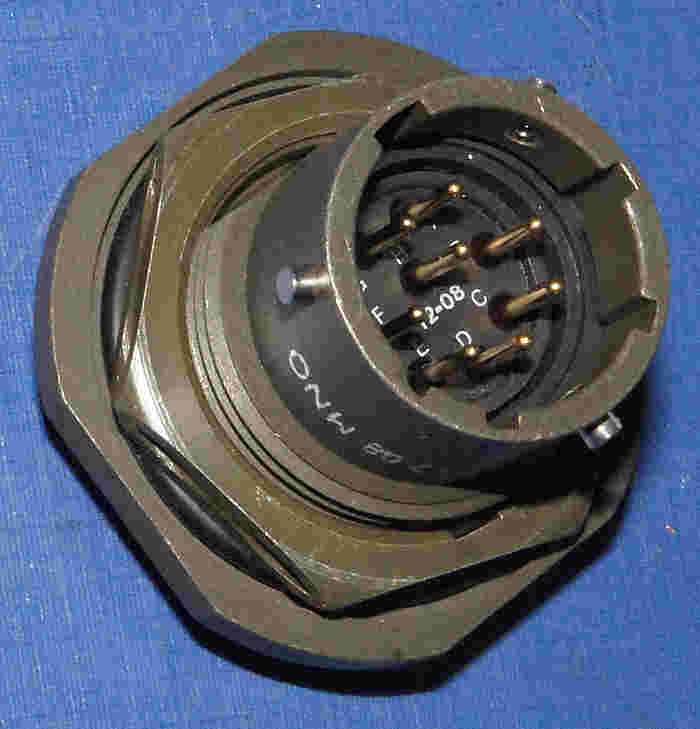

CON4470 8 way fixed plug  12-8P style. WEO9110-C2099-12-08-MNO Unused 10.00

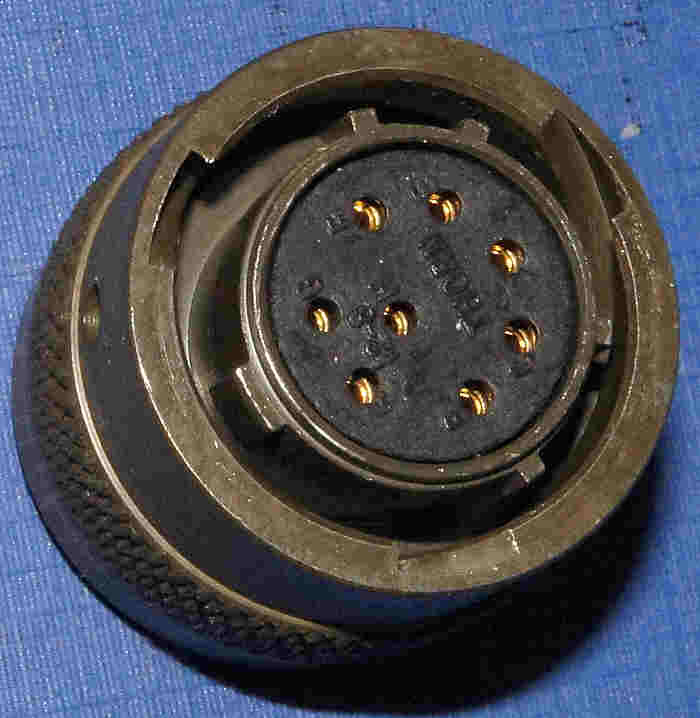

CON4471 8 way fixed socket  12-8S style.  WEQ97-30-C2099-12-08-FNO Unused 10.00
CON4472 8 way free plug  12-8P style. Thorn PT55A12-08P Unused 10.00
CON4473 8 way free socket  12-8S style. Thorn PT55A12-08S Unused 10.00

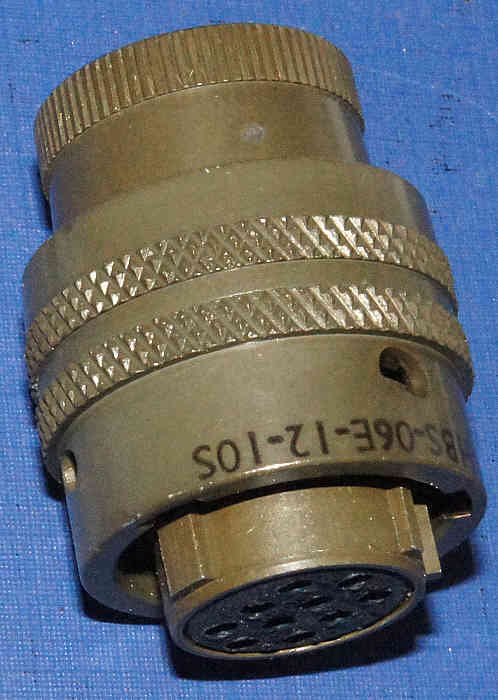

CON4475 10 way free socket 12-10S style   HBS 06E-12-10S
One only		 Unused 10.00
12-30 ways

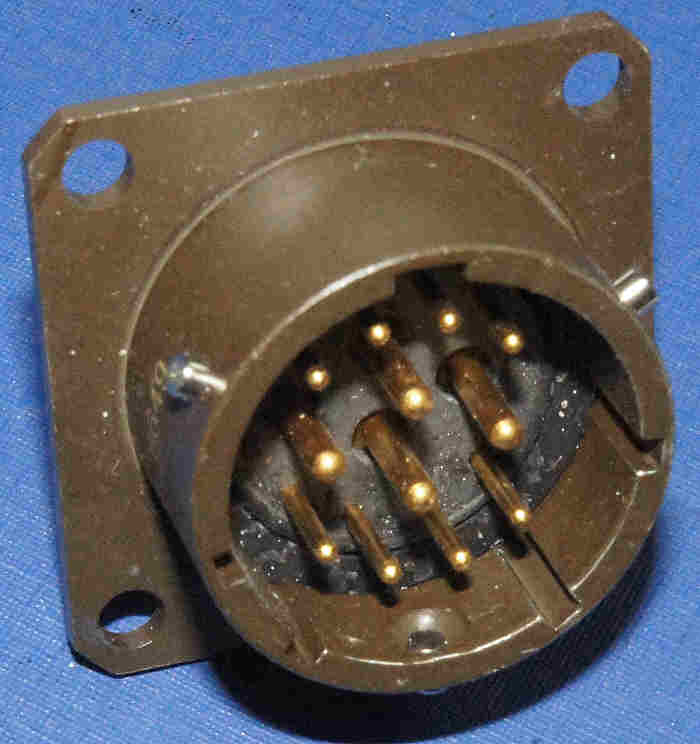

CON4476 12 way fixed plug  14-12P style. RS 472-427
One only		 Unused 10.00
CON4477B 15 way free plug  14-15P style.  Thorn PT05A-14-15P
One only		 Unused 10.00
CON4477D . 16 way fixed socket male removable loose contacts.  PT07-20-16P.  Sealed bag - one only
NATO NSN 529-4742		 Unused 16.00

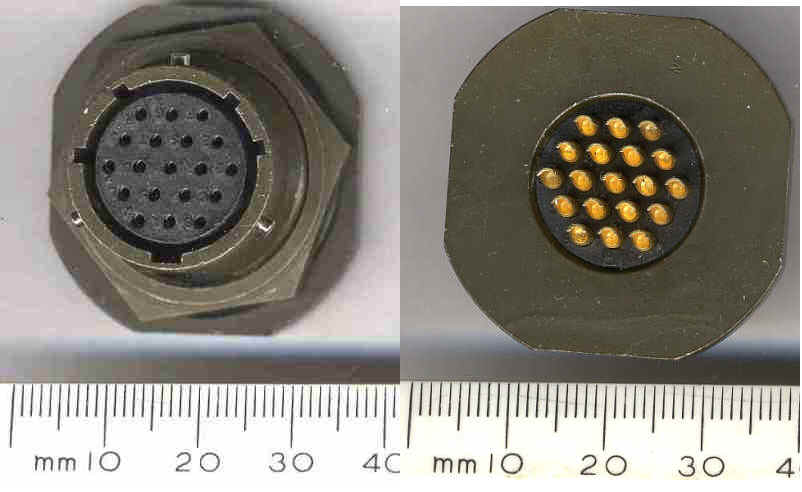

CON4478 CONN_19.jpg (34686 bytes) 19 way fixed socket.  PT07A14-19S   or ABM  C2099 14-19 FNO
Mating free plug is CON479		 Unused old stock 10.00
CON4479 . 19 way fixed socket. Burndy BT02A 14-19S
 Square flange version of CON4478   One only		 Unused old stock 10.00

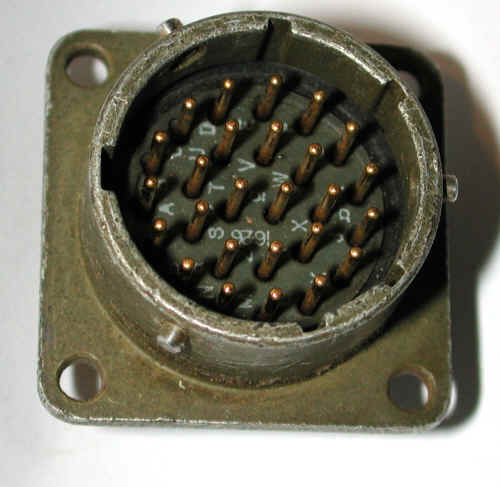

CON4481 26 way Fixed Plug.  Cannon KPT02E16-26P or equivalent RS 472-461.  Pattern 105.  Solder type.  Sealed bags.   Some available loose or used at reduced price.   RS price 19 GBP +VAT. New Old Stock 9.00
CON4482

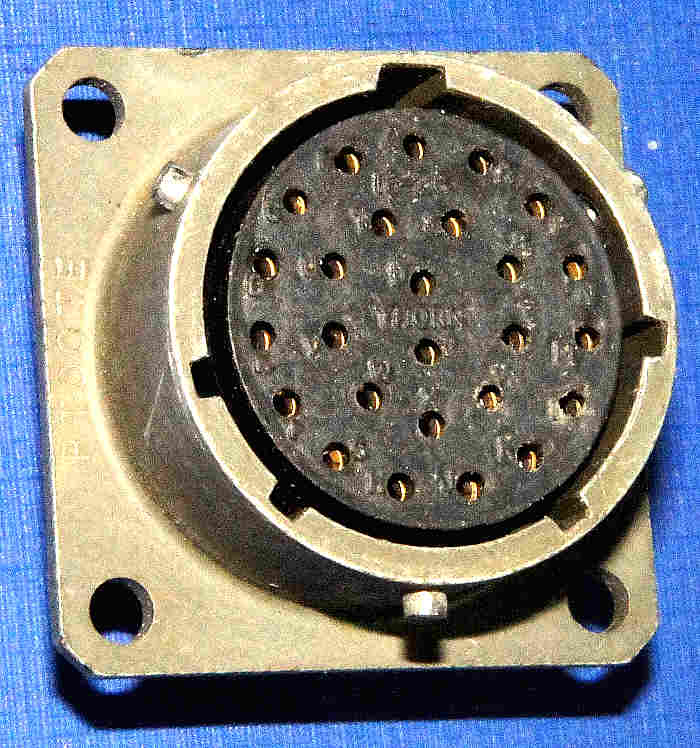

26 way Fixed Socket.  16-26S style.   Cannon KPT02E16-26S or equivalent RS 468-822.   Sealed bags.

New Old Stock 9.00
CON4483

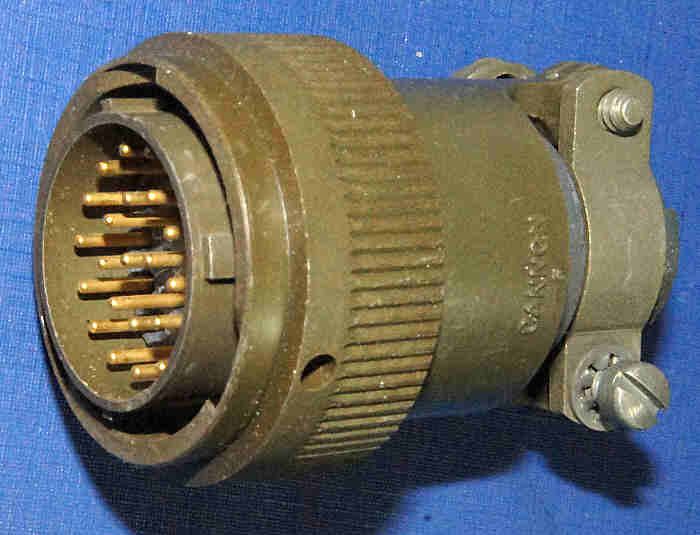

26 way Free Plug.   16-26P Style. Cannon KPT06F16-26P or equivalent RS 468-785.     Two only

New Old Stock 21.00

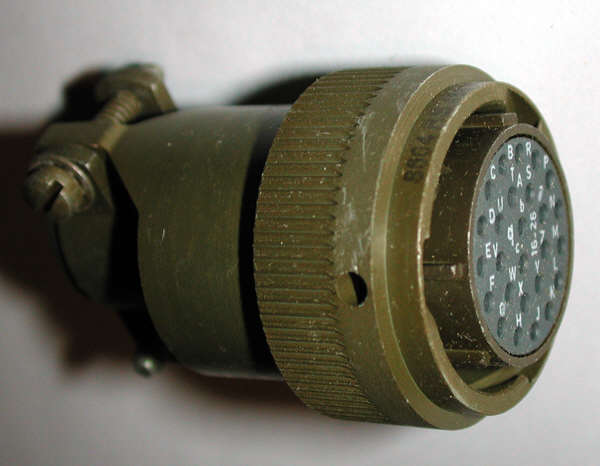

CON4484 26 way Free Socket.   Cannon KPT06F16-26S or equivalent RS 468-787.  Pattern 105. Solder type.  Sealed bags.  Complete with shroud and cable clamp.    Some available used.
RS price 54 GBP plus VAT		 New Old Stock 19.00
31+ ways

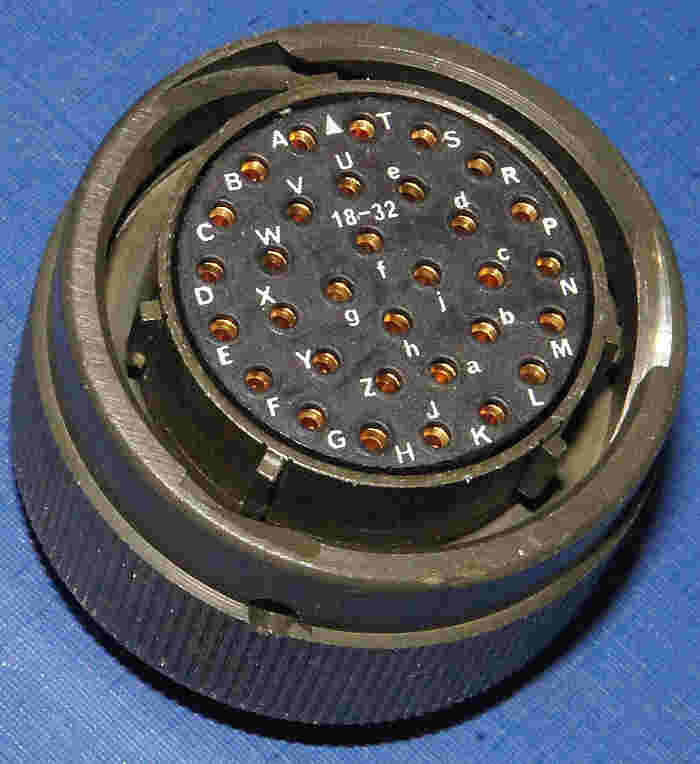

CON4491 32 way Free Socket.   18-32S style.  KPT06F-18-32S or 62GB-16E-18-32S
With cable clamp.   		New Old Stock 21.00

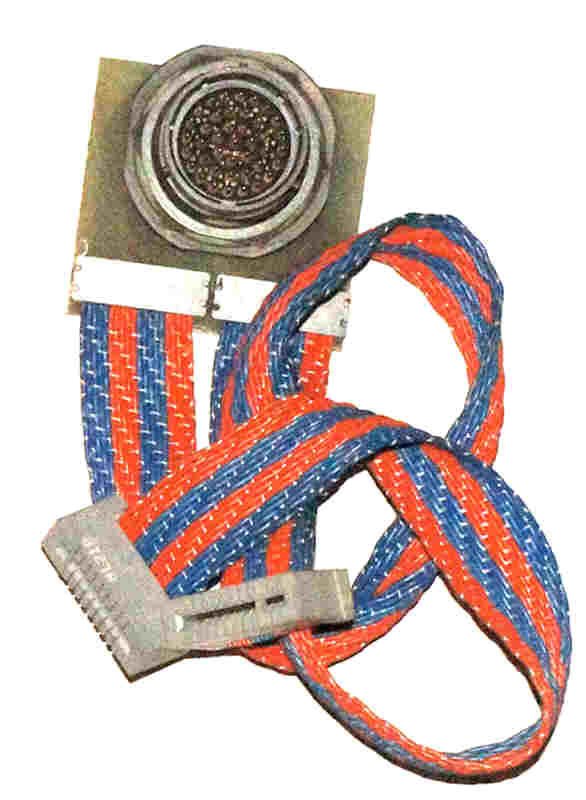

CON4492 41 way Fixed Plug. 20-41P style.
Mounted on PCB wired to two connectors.
 Used? 8.00

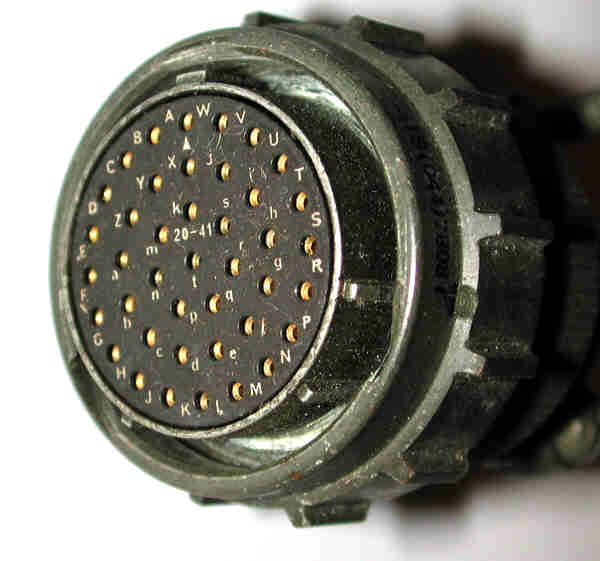

CON4493 41 way Free Socket . 20-41S style. 62GB-16F20-41S (044).
With cable clamp.    (2 only used 9.50 ea)
Old Stock 17.60

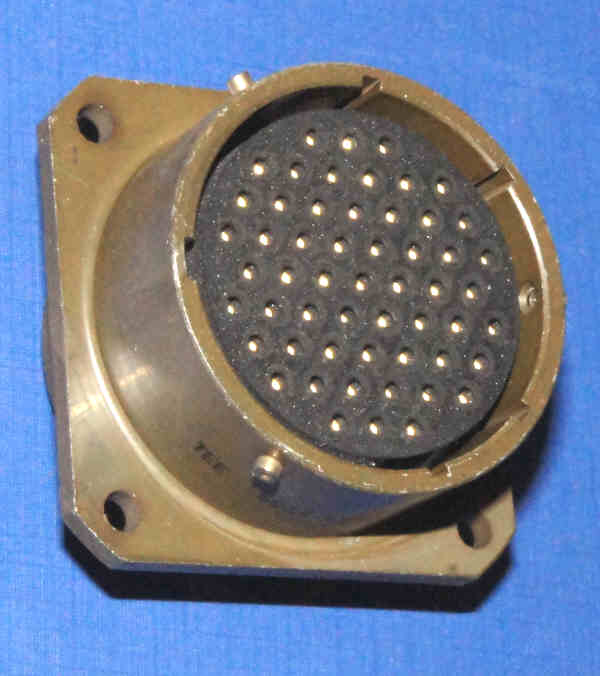

CON4495 55 way Fixed Socket 22-55 style.  Thorn.    PT02-22-55S
NSN 6935-99-529-3465.    39.8 x 39.8mm.  31.75mm centres mounting holes.		 New Old Stock 17.00

MISCELLANEOUS  MILITARY CONNECTORS and ACCESSORIES
These are available through an associate.   Prices on request.
All are new old stock items.  See HERE for further details and pictures. New page (7Mb htm)
TYPE Part Number(s)N Manufacturer
CONNECTOR D38999/24WG41SN ITT
CONNECTOR D38999/26WG16SN ITT
CONNECTOR D38999/26WG41PN AIRTECHNICS
CONNECTOR D38999/26WE8SN ITT
CONNECTOR D38999/20WE8PN ITT
CONNECTOR D38999/26WG16PN DEUTSCH
CONNECTOR D38999/26WC98PN ITT
CONNECTOR CA3106E16-10S (DN) ITT
CONNECTOR CA3106E18-08SN DN ITT
CONNECTOR CA3106E28-51SN DN ITT
CONNECTOR MS3102A28-10S SJ
CONNECTOR MS3102A28-22P SJ
CONNECTOR MS3016A28-10P AMPHENOL
CONNECTOR MS3106A28-22S AMPHENOL
CONNECTOR MS3106R12-5S AMPHENOL
CONNECTOR MS3476W/10-6S DEUTSCH
CONNECTOR MS3476W24-31S RAM+AE
ADAPTOR M85049/60-1W10 GLENAIR
ADAPTOR M85049/60-2G24W ELECTRO ADAPTER
ADAPTOR M85049/69-23A ELECTRO ADAPTER
ADAPTOR M85049/69-17A ELECTRO ADAPTER
ADAPTOR M85049/69-25A ELECTRO ADAPTER
ADAPTOR M85049/69-21A ELECTRO ADAPTER
CONNECTOR VG95234G32-1PN SPACECRAFT
CONNECTOR CA3106E20A48S ITT
RECEPTACLE MS75058-1 BAY ELEC ?
CONNECTOR, PLUG,   SLAVE TGC2338 5935-00-567-0128 61090
CABLE TIE  INSULOK T/8LW HELLERMANN
LUG 11676228  88364246 BURNDY
CONNECTOR 44-104-10005-02 AMPHENOL
INSERT, SCREW THREAD  10947291
5325-01-093-5525		 -
TERMINAL LUG MS35036-134 -


U.K. Air Ministry 10H series         The metal 450n types are the forbears of the Pattern 104 Connectors.

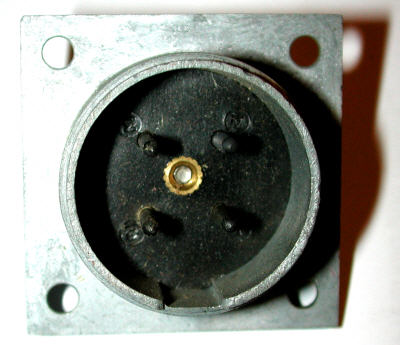

CON4502 Chassis Plug 4 way Air Ministry type 10H/391.
Diecast frames which are brittle and liable to damage.  Sometimes available.		 Ex equipment P.O.A

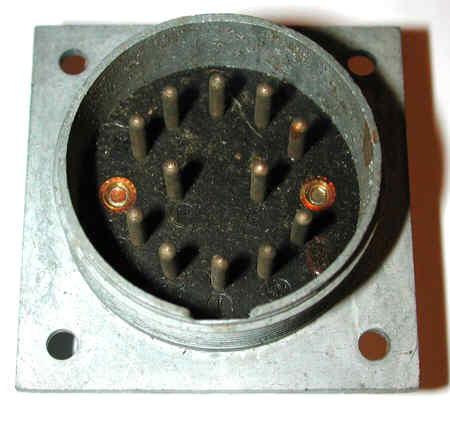

CON4503 Chassis Plug 12 way Air Ministry type 10H/395.
Diecast frames which are brittle and liable to damage.  Sometimes available.		 Ex equipment P.O.A

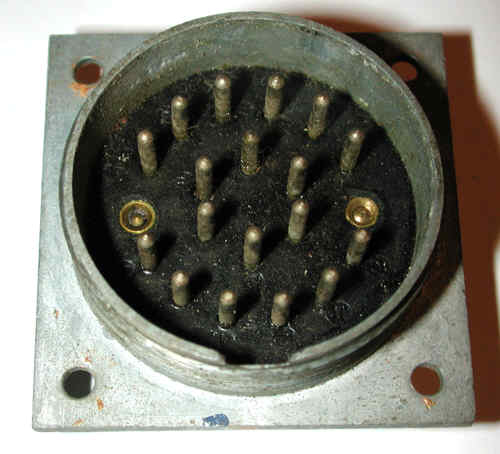

CON4504 Chassis Plug 18 way Air Ministry type 10H/396.
Diecast frames which are brittle and liable to damage.  Sometimes available.		 Ex equipment P.O.A

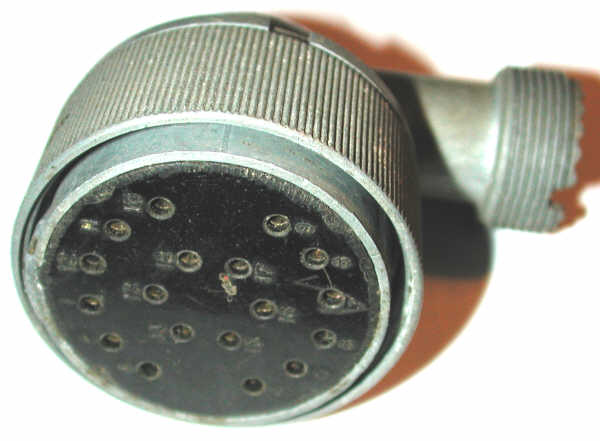

CON4505 Free Socket 18 way Air Ministry type 10H/418.
Diecast frames which are brittle and liable to damage.  Sometimes available.		 Ex equipment P.O.A
CON4506 . Chassis Plug 6 way Air Ministry type 10H/394. Ex equipment P.O.A

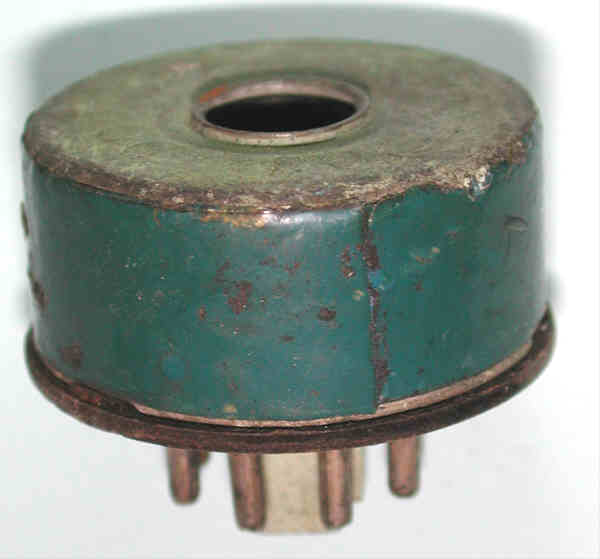

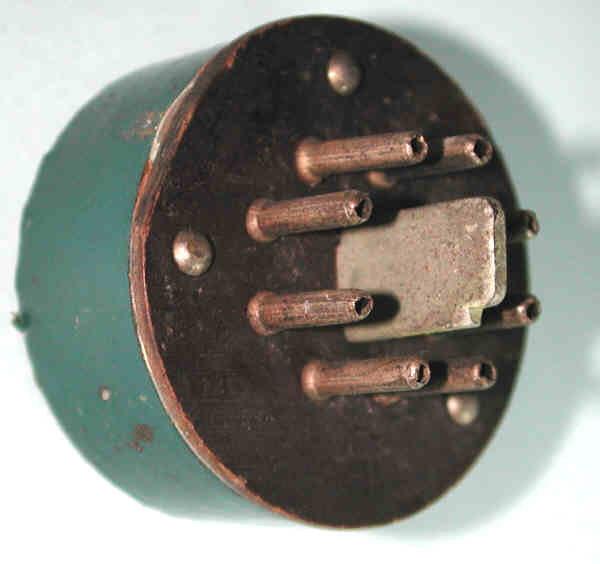

CON4515 Octal Plug.   1940s Type. Cinch and Radiospares brands.  Used and Unused. Various conditions/Coloured by tape.
 Used from
1.90

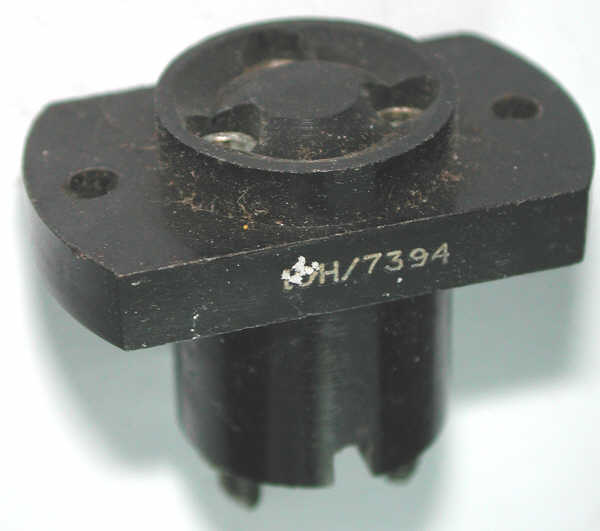

CON4517 3 pole Chassis fixed socket. 10H/7394
17mm diameter, 33 x 19mm flange.  One only
 Ex equipment 5.00

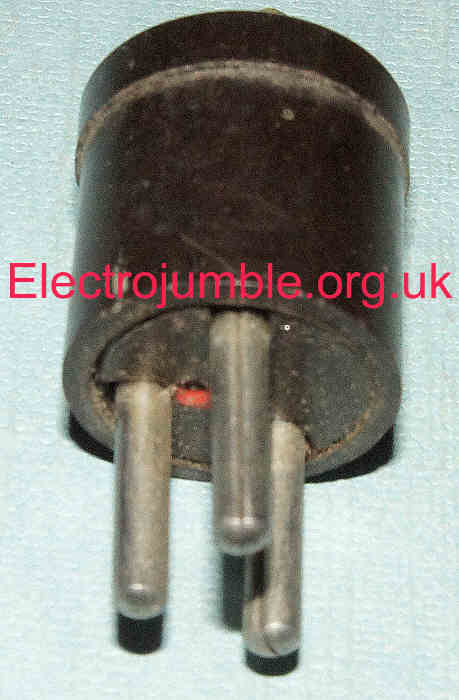

CON4518 3 pole Free plug. 10H/7383
19mm diameter, 40mm overall		 Used 5.00

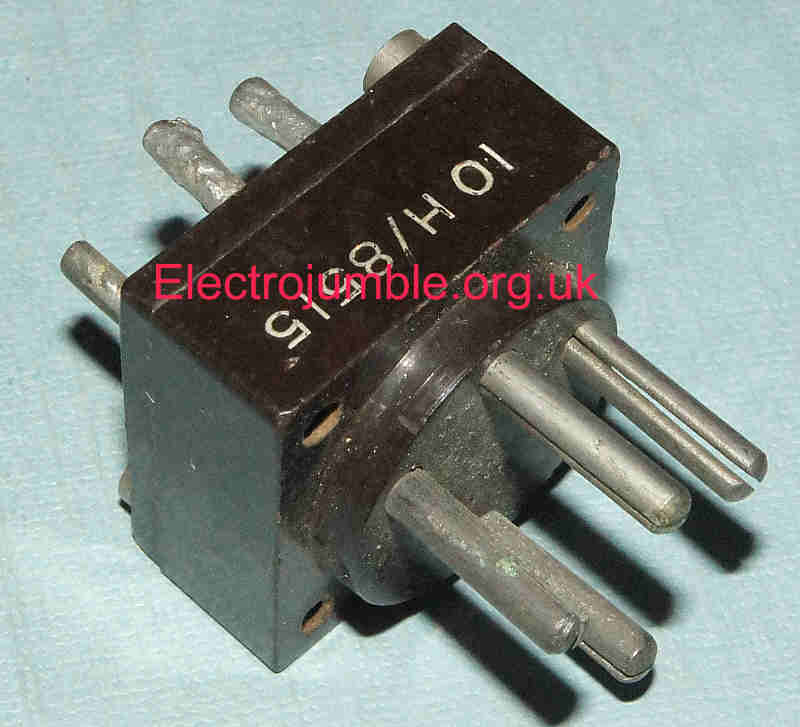

CON4519 4 pole fixed male 10H/8515 Used 5.00
BELLING-LEE MULTIWAY,  10H, ZA and 5C types

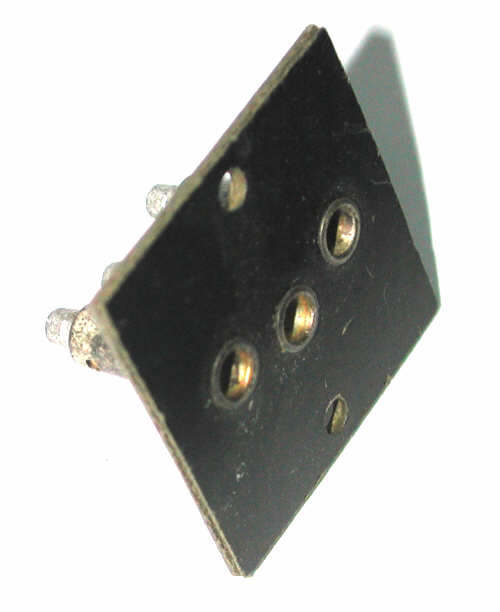

CON4531 3 way chassis Socket
32mm square 25.4mm fixing hole centres
Unused or clean recovered as available		 . 4.00
 to
8.00

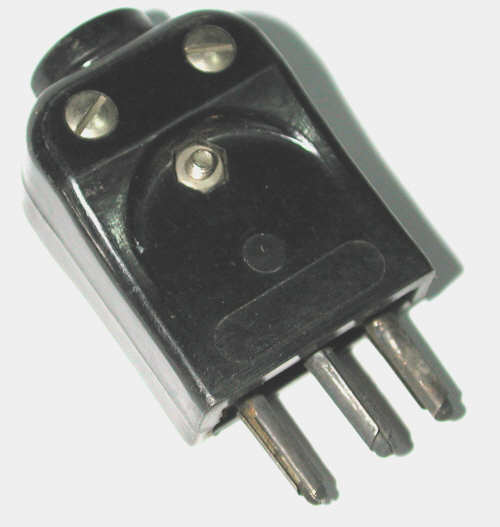

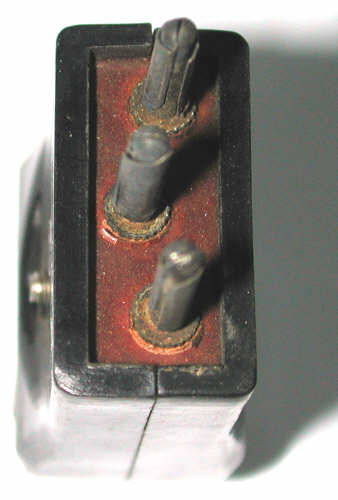

CON4532   3 way Free Plug  15mm between outer pins, 26 x 14 x 55 mm.
Unused or clean recovered as available		 . 4.00
 to
8.00

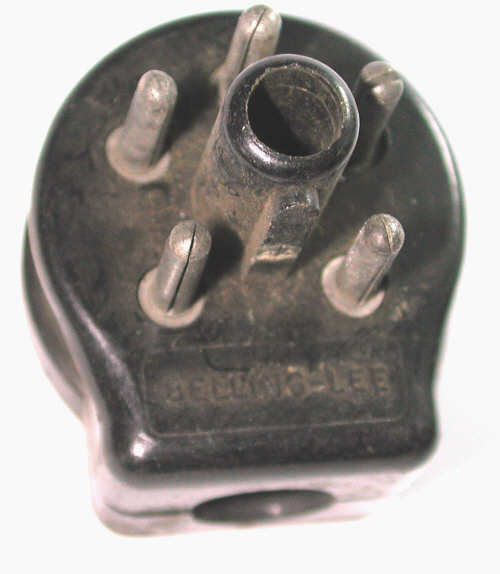

CON4535 5 way Free Plug 10H/254B  Air Ministry Plug type 172.
34mm diameter top, 40mm deep over pins
Unused or clean recovered as available		 . 4.00
 to
8.00

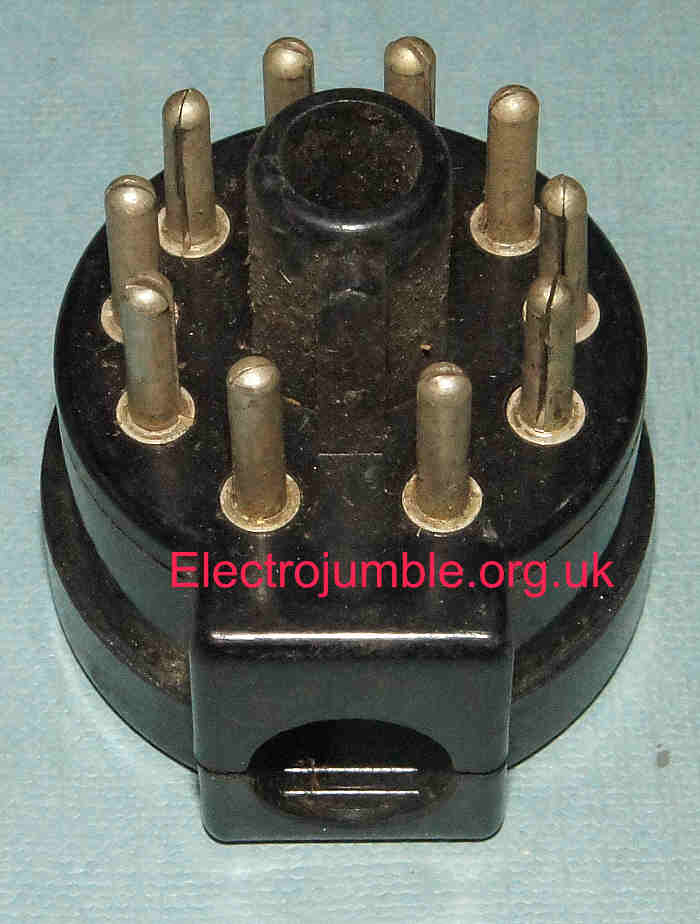

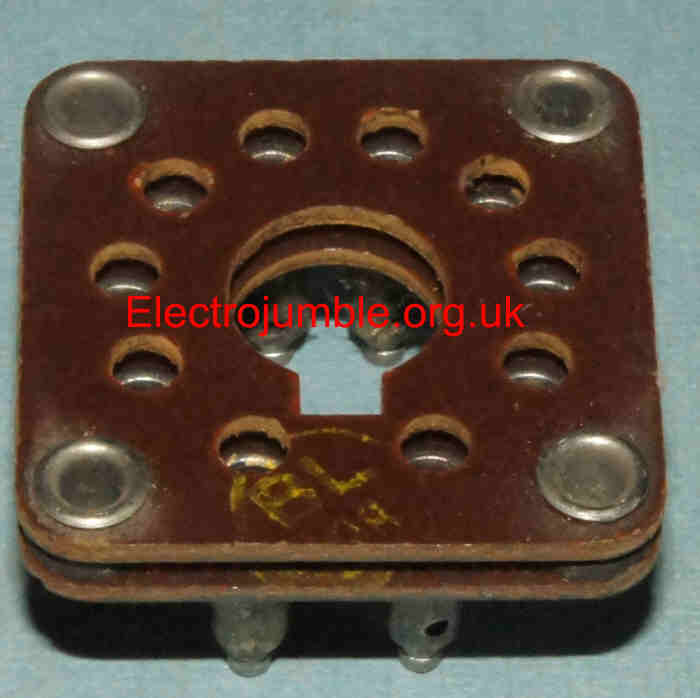

CON4538 10 way chassis socket Belling-Lee double paxolin riveted eyelets Unused 8.00
CON4539 10 way Free Plug 10H/258B . 6.50
to 9.00

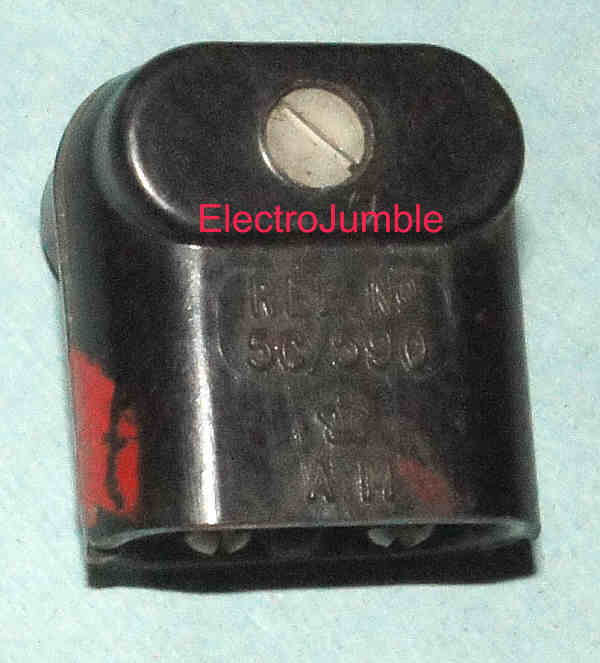

CON4551 2 pole free male receptacle. 5C/390  AM crown marked Red paint stores marked ?Unused 4.00

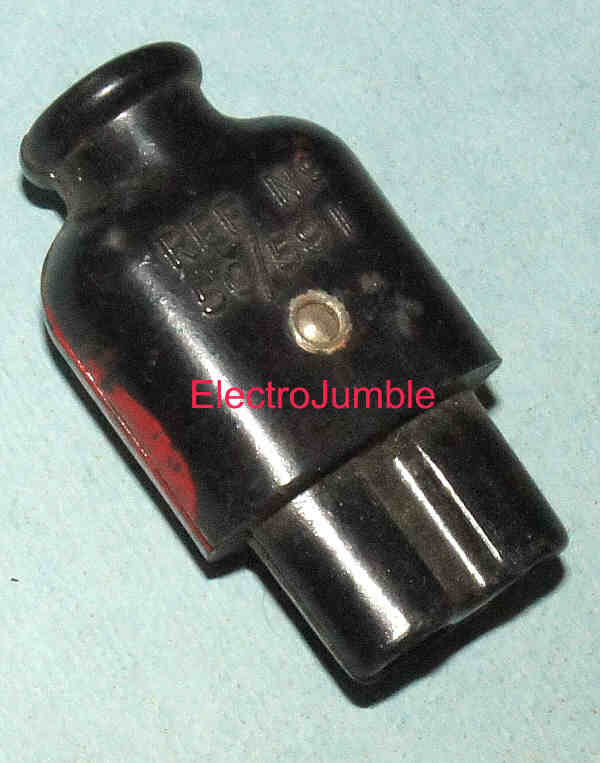

CON4552 2 pole free female plug. 5C/391  AM crown marked  Red paint stores marked ?Unused 4.00

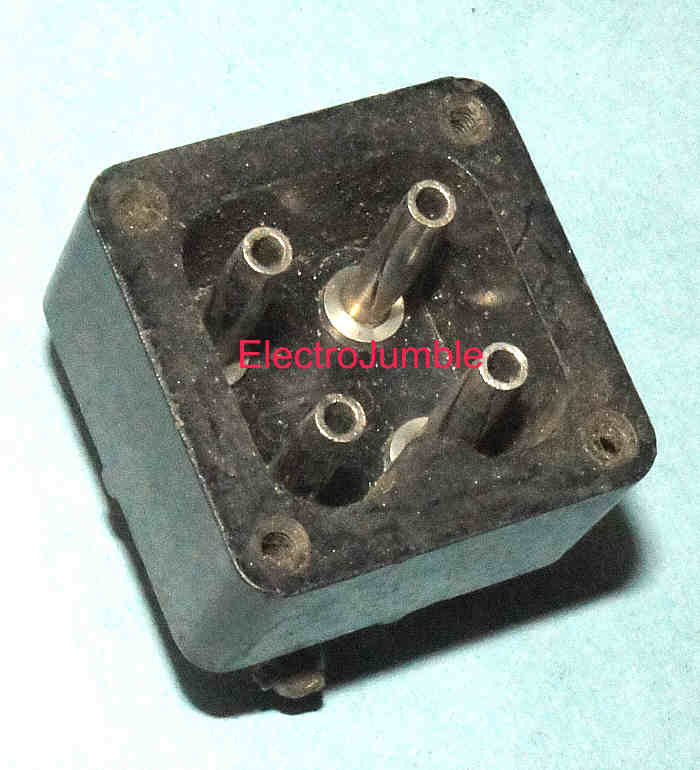

CON4562A 4 pole fixed male receptacle  ZA7923  33mm cube.  As used on WS18 sets Used 5.00

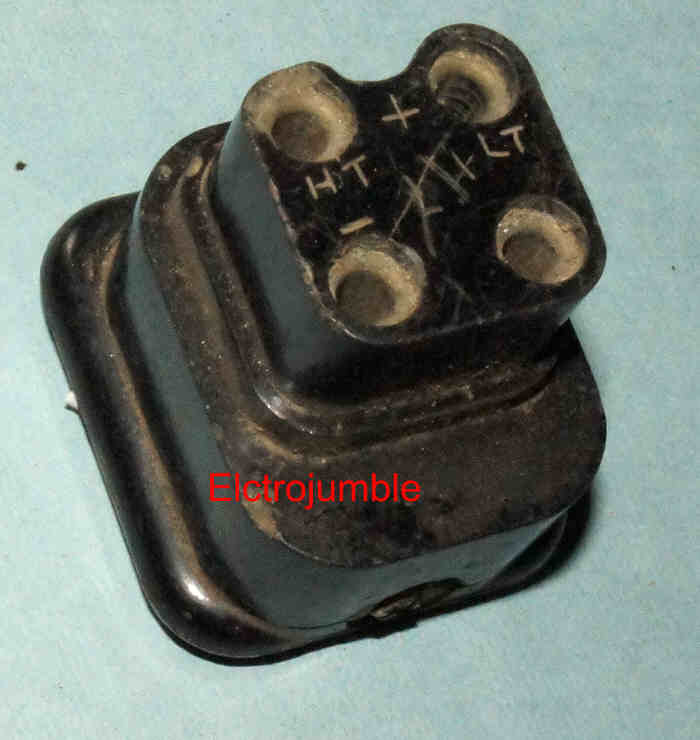

CON4563 4 pole free female plug. ZA 6543 Mates with above. As used on WS18 sets Used 8.00

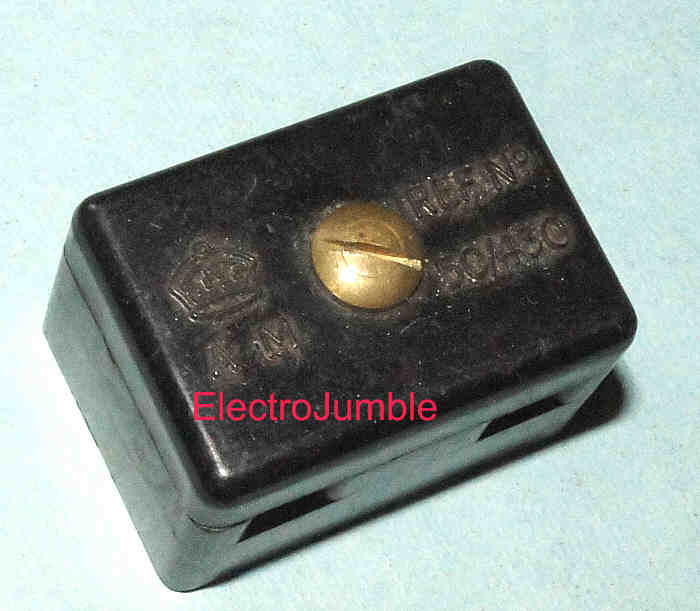

CON4573 2 way connector block  5C/430  AM crown marked  35 x 24 x 22mm ?Unused 4.00

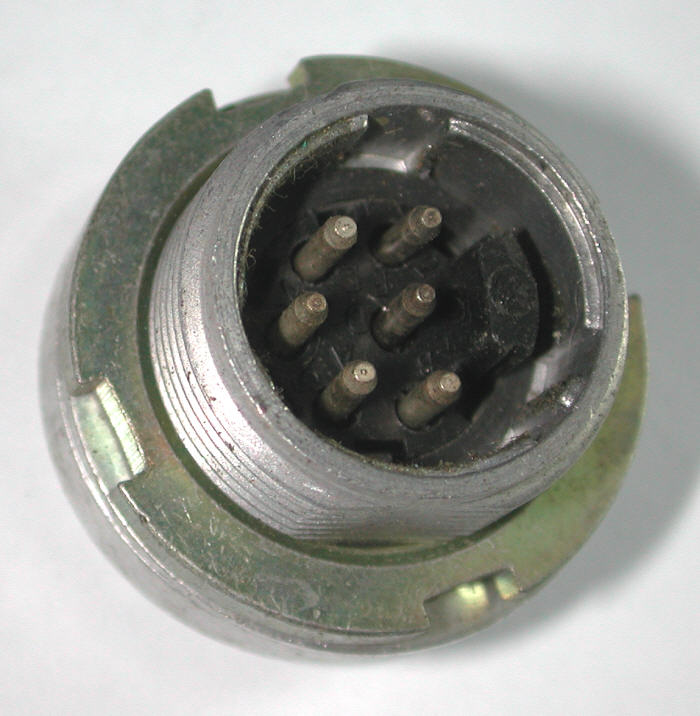

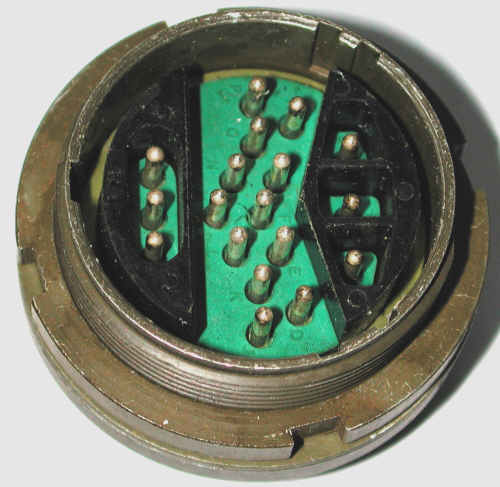

Pattern 104 - Plessey Mk4 and Mk7 Connectors.
Aluminium, Plain (Mk4)and Olive (Mk7) types available in various configurations, fixed and free.

See HERE for some details of the range.
See HERE for part number cross-references.
 They were widely used on military radios such as the Racal B40, R117 etc.
Made by various companies such as AB Metals, Smart and Brown and Weald to Services specification.
Old stock (NOS) items may have storage marks as some have not been stored packed.
There are 3 sizes, small, medium and large.  See range details - available via above link.
Free types require the addition of back-shells (hoods) and cable restraints.  Some available from 8 GBP per set
Most types are in orientation "0".   The orientation can be changed on the Mk4 and brass types but not on the Mk7.
    Very Few left - especially the free connectors

    2 way Plessey Connectors

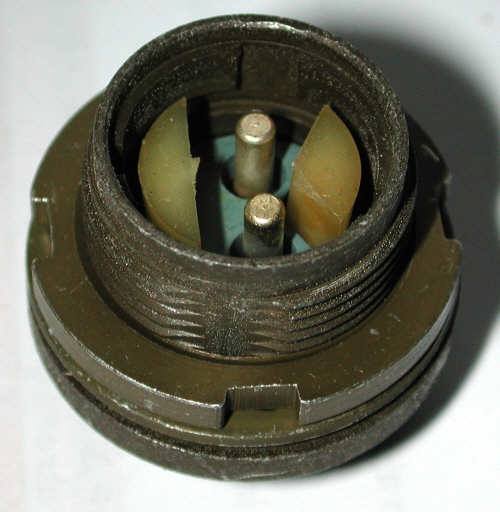

CON5521 Pattern 104  - "Plessey" Mk 7 Aluminium Small Fixed 2 way Socket. New Old Stock 3.50
CON5522 Pattern 104  - "Plessey" Mk 7 Aluminium Small Fixed 2 way Plug.  New Old Stock 3.50
CON5523 . Pattern 104  - "Plessey" Mk 4 Aluminium Small Fixed 2 way Socket. New Old Stock 3.90
CON5524 . Pattern 104  - "Plessey" Mk 4 Aluminium Small Fixed 2 way Plug. New Old Stock 5.90
    Free small 2 way Plugs and sockets Mk4 and 7 available - please enquire

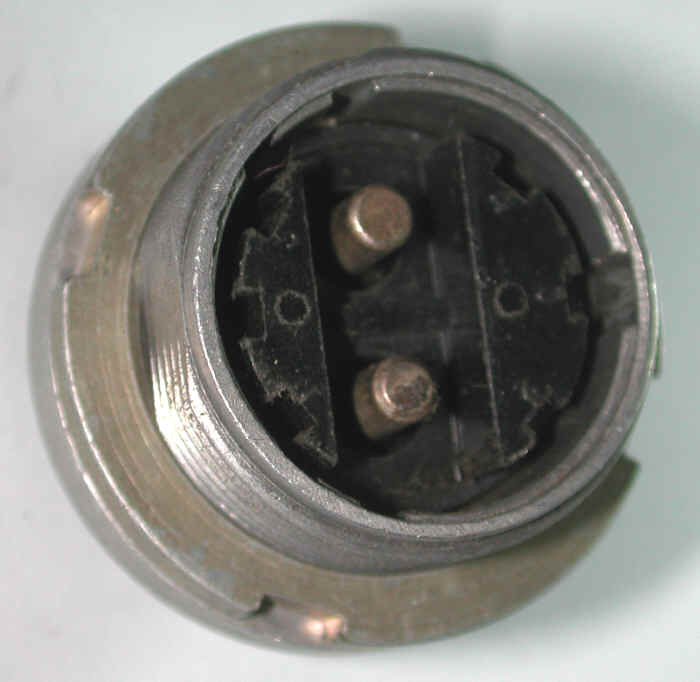

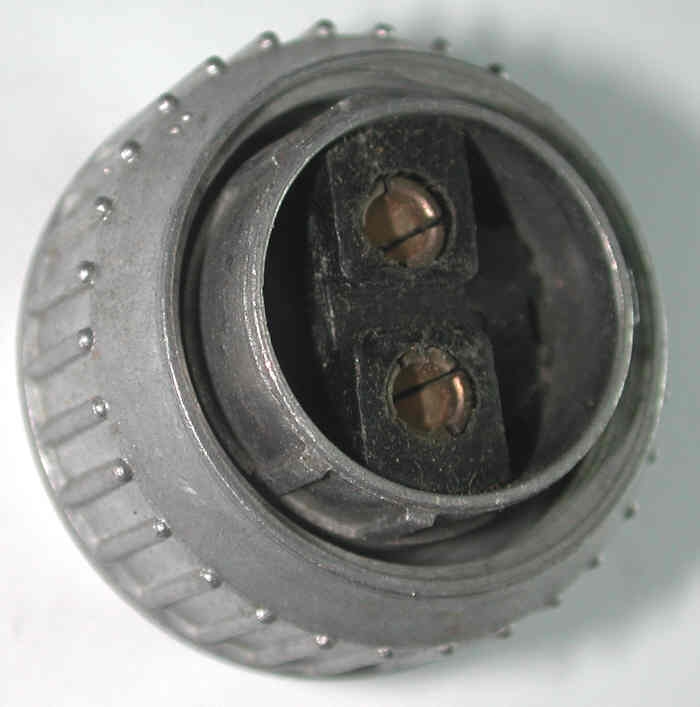

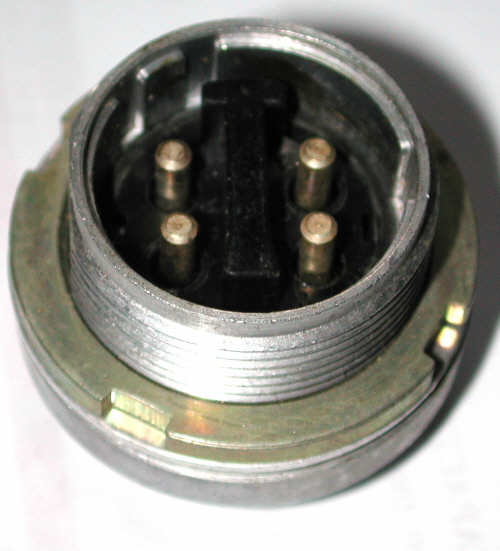

CON5525 Pattern 104  - "Plessey" Mk 4 Aluminium Medium Fixed 2 way Plug. New Old Stock 4.90
CON5526 Pattern 104  - "Plessey" Mk 4 Aluminium Medium Free 2 way Socket. Back shell etc extra New Old Stock 4.90

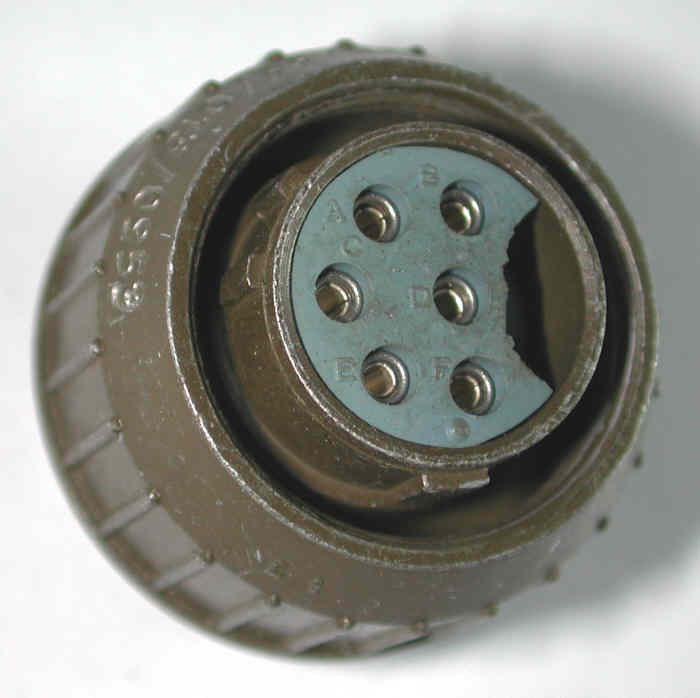

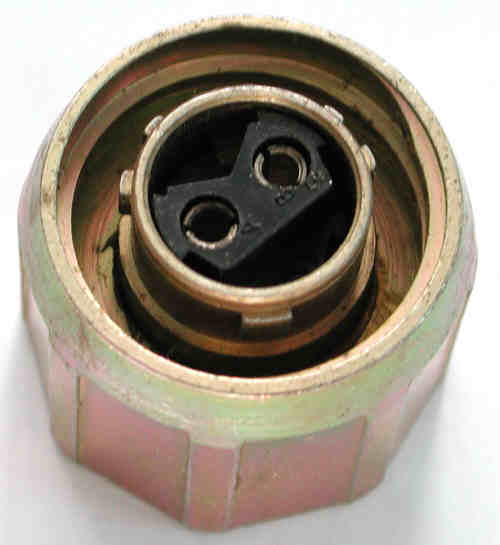

CON5528 Pattern 104  - Mk7  Brass Small Free 2 way Socket. Back shell etc extra New Old Stock 10.00
    3 way Plessey Connectors
    Out of stock

    4 way Plessey Connectors

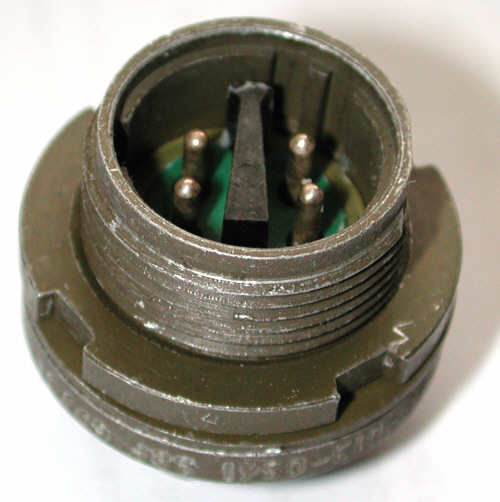

CON5541 Pattern 104  - "Plessey" Mk 7 Aluminium Small Fixed 4 way Plug.
Replaces plain aluminium Mk IV Z560070.  (Some Mk 4 available)		 New Old Stock 3.90
CON5542 Pattern 104  - "Plessey" Mk 7 Aluminium Small Fixed 4 way Socket.
Replaces plain aluminium Mk IV Z560250.
Also Mk4 available		 New Old Stock 3.90
CON5544 . Pattern 104  - "Plessey" Mk 7 Aluminium Small Free 4 way Plug..   Back shell etc extra
 New Old Stock 3.50
CON5545 Pattern 104  - "Plessey" Mk 7 Aluminium Small Free 4 way Socket.   Back shell etc extra
Replaces plain aluminium Mk IV Z560110.
Also Mk4 available		 New Old Stock 3.50
    A few 4 way small coupler sockets and plugs available
CON5551 Pattern 104  - "Plessey" Mk 4 Aluminium Medium Fixed 4 way Plug.
NATO Ref  5935-99-013-0565.  Plessey ref 508/1/07066/220  		New Old Stock 3.50
CON5552 Pattern 104  - "Plessey" Mk 4 Aluminium Medium Free 4 way Socket.
 NATO Ref  5935-99-013-0965.  Plessey ref 508/1/07006/220  		New Old Stock 3.50

    6 way Plessey Connectors
CON5561 Pattern 104  - "Plessey"  Brass Small Fixed 6 way Plug and Cap.
Ex Equipment.   		Used 7.90
CON5563 Pattern 104  - "Plessey" Mk 7 Aluminium Small Fixed 6 way Plug.  New Old Stock 4.90
CON5564 Pattern 104  - "Plessey" Mk 7 Aluminium Small Free 6 way Socket.  New Old Stock 4.90
CON5565 Pattern 104  - "Plessey" Mk 4 Aluminium Small Fixed 6 way Plug.  New Old Stock 4.90
CON5566 Pattern 104  - "Plessey" Mk 4 Aluminium Small Free 6 way Socket.  New Old Stock 4.90
CON5567 Pattern 104  - "Plessey" Mk 4 Aluminium Medium Fixed 6 way Socket.  New Old Stock 4.90
CON5568 Pattern 104  - "Plessey" Mk 4 Aluminium Medium Free 6 way Plug.  New Old Stock 4.90

    12 way Plessey Connectors
CON5621 Pattern 104 - "Plessey" Mk 7 Aluminium Medium Fixed 12 way Socket.  NATO Ref  5935-99-013-0889.   Plessey ref 508/1/07049/220.
Replaces plain aluminium Mk IV Z560330.		 New Old Stock 3.00
CON5622 Pattern 104  - "Plessey" Mk 7 Aluminium Medium Free 12 way Socket.  NATO Ref  5935-99-013-0989.  Plessey ref 508/1/07029/220
Replaces plain aluminium Mk IV Z560180.		 New Old Stock 3.90
CON5628 Pattern 104  - "Plessey" Mk 7 Brass Coarse thread Small Double-Density Free 12 way.
Smart and Brown Code SB104T4-BS-12-7SE0/GP
 		New Old Stock 8.50
    A very few other 12 way Mk4/7 types available, fixed, free. coupler  etc

    18 way Plessey Connectors
CON5631 Pattern 104 - "Plessey" Mk 7 Aluminium Large Fixed 18 way Plug.
NATO Ref  5935-99-013-0601.   Plessey ref 508/1/07075/220.  		New Old Stock 5.20
    A few other 18 way Mk4/7 types available, fixed, free. coupler  etc

    25 way Plessey Connectors
CON5651 Pattern 104  - "Plessey" Mk 4 Aluminium Large Fixed 25 way Plug. New Old Stock 4.50
CON5652 Pattern 104  - "Plessey" Mk 4 Aluminium Large Free 25 way Socket. New Old Stock 4.50

CON5671 Protective Cover, Brass, Small.  23.1mm diameter thread
For protection of brass panel connectors. Screws on with rubber seal.		 New Old Stock 4.50
CON5672 Protective Cover, Brass, Medium.  28.4mm diameter thread
For protection of brass panel connectors. Screws on with rubber seal.		 New Old Stock 5.50
CON5673 Protective Cover, Brass, Large.  38.2mm diameter thread
For protection of brass panel connectors. Screws on with rubber seal.		 New Old Stock 6.50
CON5674 Protective Cover, Brass, Small, Olive Drab.  25mm over thread.
For protection of brass cable end connectors. Screws on with rubber seal.		 New Old Stock 4.50

   BACK to TOP



 For information on how to buy, please see the information page

Information Page

Home Up Extender_Boards Military Industrial Coax Rectang, Test, PCB Mains Filter Audio

Updated July 25, 2019
