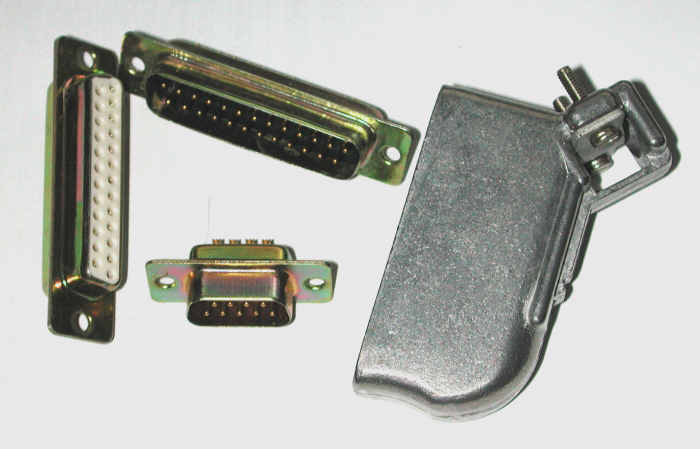

D Type
DIN 41612

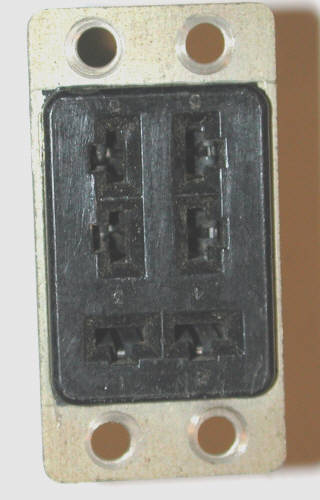

"Jones"

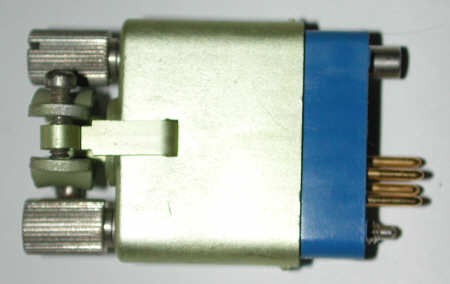

MRAC
Red Range
PCB
Edge
Rack
Paxolin Strip
Test Point
Feed Through
Fibre Optic
Amphenol
Farnell
McMurdo
Oxley
Radiall
RS
Ultra
Vero



Note that most items are now between 30 and 70 years old.

Some tarnishing of contacts may have occurred.  I can advise on the detailed condition of specific items on request



Cat No.

Click Pics
for larger View

Description

Condition

Price

GBP

CON1500 PCB EDGE and Rack Connectors.  Various types New and Ex Equipment.
A few other types available, please ask
. .
0.1 inch

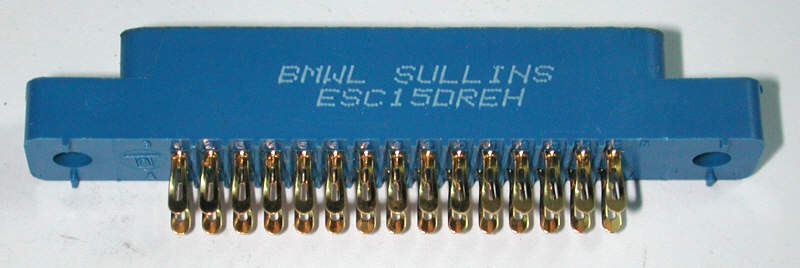

CON1511 Edge Connector Double sided 2 x 15 way 0.1" pitch  BMWL SULLINS. 53mm centres, 60mm overall New Old Stock 4.20

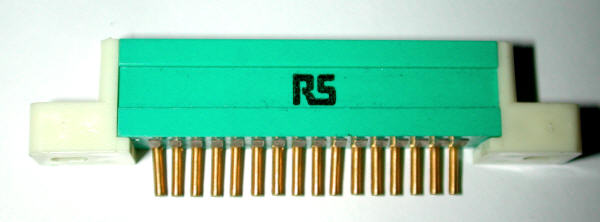

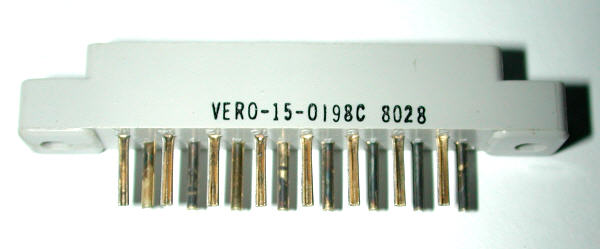

CON1512 Edge Connector Single sided 16 way 0.1" pitch Ultra /Vero 15-0198C.   53mm centres, 62mm overall New Old Stock 4.20
CON1512u Edge Connector Single sided 16 way 0.1" pitch Ultra /Vero 15-0198C.   53mm centres, 62mm overall Used 3.00
CON1513 Edge Connector Single sided 16 way 0.1" pitch RS 466-539
58mm centres, 68mm overall
New Old Stock 3.70

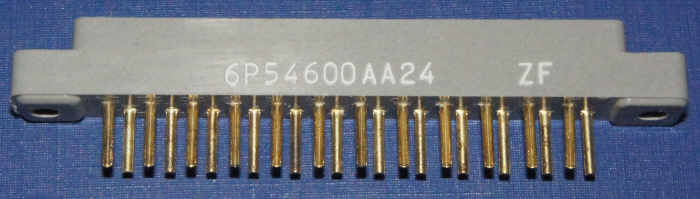

CON1515 Edge Connector Single  24 way 0.1" pitch Ultra 6P54600AA24
2 rows of gold plated contacts.  74mm centres, 81mm overall
New Old Stock 4.00

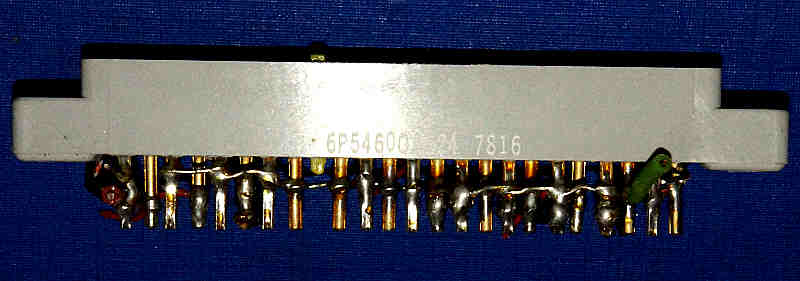

CON1516 Edge Connector Single sided 24 way 0.1" pitch Ultra 6P54600AE24 or Vero 15-0199E
Single row of gold plated contacts.  74mm centres, 81mm overall
Many are polarised with a contact replaced by a peg in positions 13 or 19
Ex equip 2.80

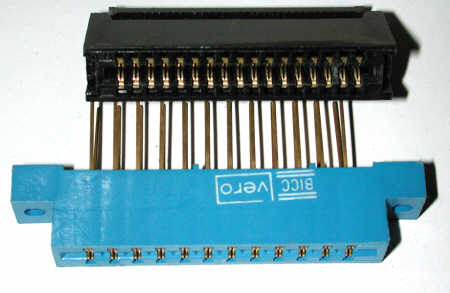

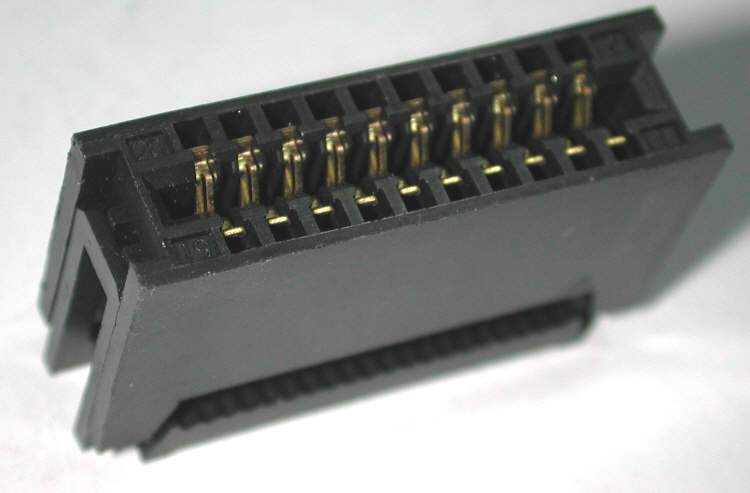

CON1517 Edge Connector  to IDC Double sided 10 way 0.1"  to 20 way Ribbon Cable.
2 rows of gold plated contacts.   35mm long, 10mm wide.
New Old Stock 4.80

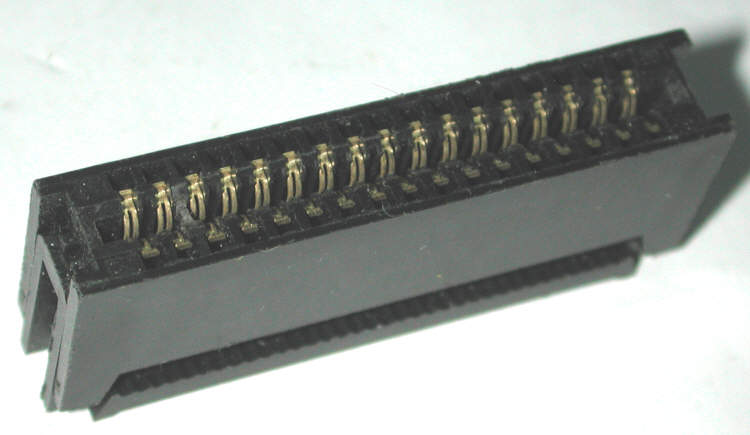

CON1518 Edge Connector to IDC Double sided 17 way 0.1"  to 34 way Ribbon Cable.
2 rows of gold plated contacts.   52mm long, 10mm wide.
New Old Stock 3.10

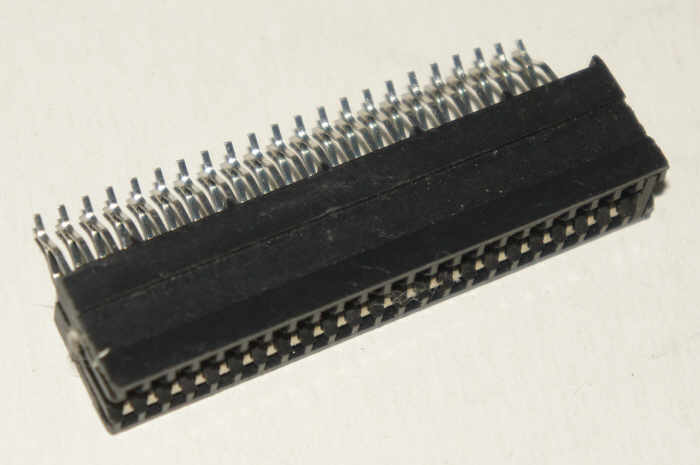

CON1519 Edge Connector Double sided 2 x 23 way 0.1" pitch
59mm overall.  Polarising plug fitted to some.
New Old Stock 3.60
CON1520 . Edge Connector Double sided 2 x 22 way 0.1" pitch  Ultra 5C54640Q023 - 23 - CA3
With mounting feet  (One only)
New Old Stock 4.60

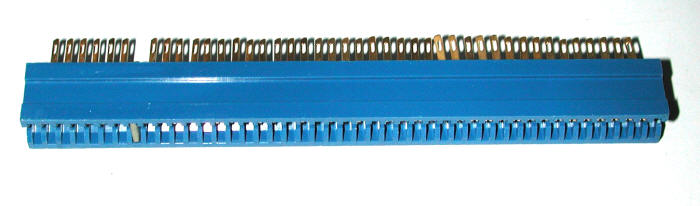

CON1523 Edge Connector Single sided 43 way 0.1" VERO 10859/2. Gold plated.
Position 7 polarised with key. 115mm overall.
This is the same as RS 466-999 (CON1525). The latter is marked differently so that position 37 is polarised rather than "7".    Physically they are the same.
New Old Stock 5.50

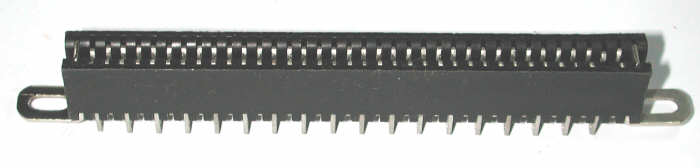

CON1524 . Edge Connector Single sided 36 way 0.1"
106mm centres, 117mm overall. Double-edged connector with mounting feet.
New Old Stock 5.20
CON1525 Edge Connector Single sided 43 way 0.1" RS 466-999 Gold plated. Boxed
With 2 mounting feet.    Position 37 polarised with key. 115mm overall.
New Old Stock 6.50
CON1525b Edge Connector Single sided 43 way 0.1" Ultra or Vero  Gold plated.
 Position 37 polarised with key. 115mm overall.
New Old Stock 5.50
CON1526 Edge Connector Double sided 43 way 0.1" RS 467-021. Gold plated.
With 2 mounting feet.   Position 37 polarised with key. 115mm overall.  Boxed
New Old Stock 7.80
0.12 inch

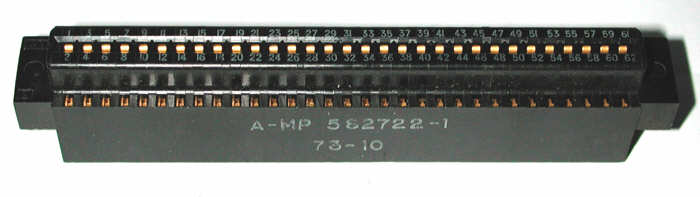

CON1531 Edge Connector Double Sided 2 x 31  way 0.12" pitch A-MP582722-1.
For wire insertion. Numbered positions 1 to 62.  108mm centres, 114mm overall.
New Old Stock 6.20
0.15 inch

0.155 inch

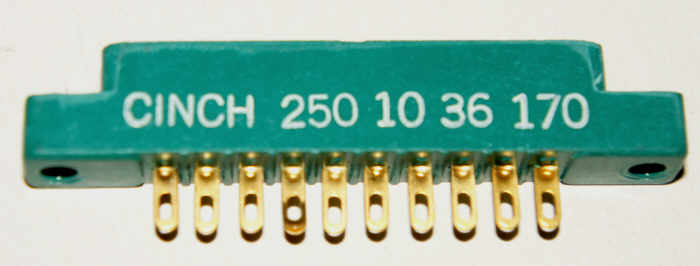

CON1545D Edge Connector Single Sided 10  way 0.155" pitch,  Cinch 250 10 36 170
54mm centres, 62mm overall.  Removable polarising key fitted in one location
New Old Stock 4.50

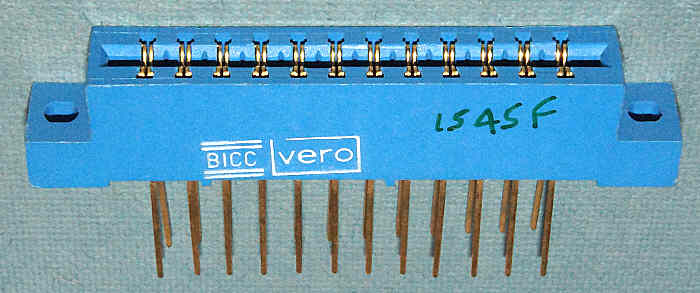

CON1545F Edge Connector Double Sided 2 x 12  way Gold plated 0.155" pitch.  BICC Vero
62mm centres, 70mm overall.  Wire wrap spills
New Old Stock 6.50

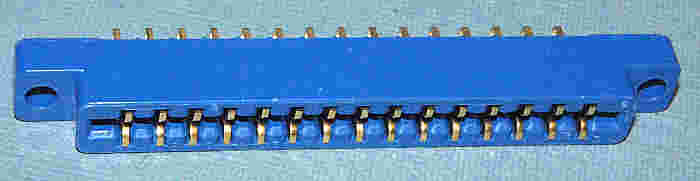

CON1545H Edge Connector Single Sided 15  way 0.155" pitch. Amphenol 143-D15-01
74mm centres, 81mm overall.
New Old Stock 4.70
CON1545J As 1545D Edge Connector Single Sided 15  way 0.155" pitch. Cinch 252 15 30 240
74mm centres, 81mm overall. PCB spills.
Used 3.10

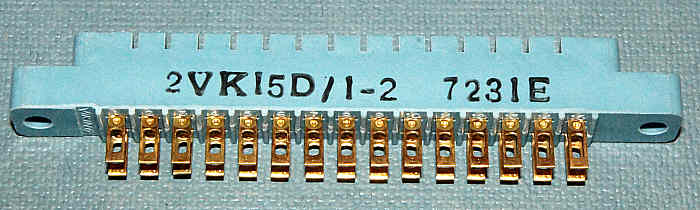

CON1546 Edge Connector Double Sided 2 x 15  way Gold plated 0.155" pitch.  2VK15D
75mm centres, 81mm overall.
New Old Stock 8.50

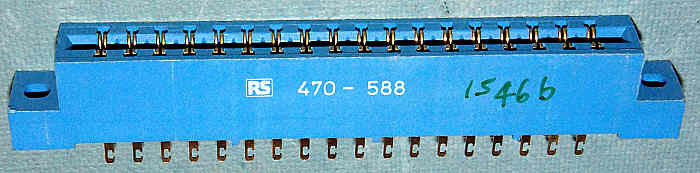

CON1546B Edge Connector Double Sided 2 x 18  way Gold plated 0.155" pitch.
86mm centres, 94mm overall. RS 470-588
Unused 5.80

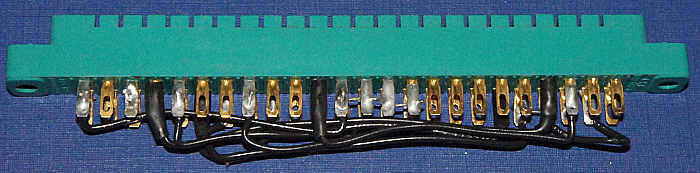

CON1546D Edge Connector Double Sided 2 x 22  way Gold plated 0.155" pitch.
103mm centres, 110mm overall. Ex HP computer
Used 4.00
CON1547u Edge Connector Double Sided 2 x 24  way Gold plated 0.155" pitch.
110mm centres, 116mm overall. Ex HP computer
Used 4.00

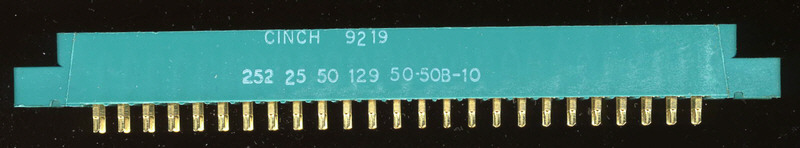

CON1548 Edge Connector Double Sided 2 x 25  way 0.155" pitch. Cinch 252 25 50 129 50-50B-10
115mm centres, 120mm overall.
New Old Stock 7.90

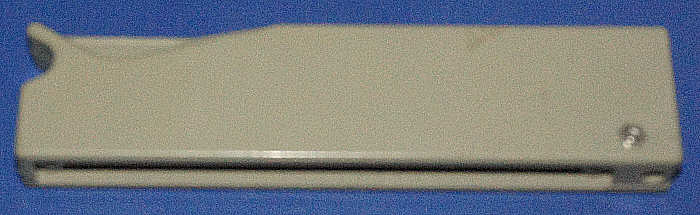

CON1549 Edge Connector Cover. Ex HP.  Converts Connector to free socket.
Available for  24 way edge connectors.
Used 4.00
0.2 inch

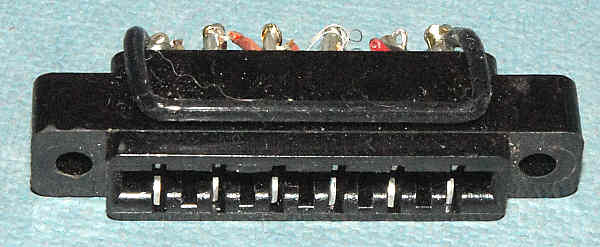

CON1550 Edge Connector Single with double-sided contacts 6 way 0.19" pitch
38mm centres, 45mm overall. Black
Used 4.00

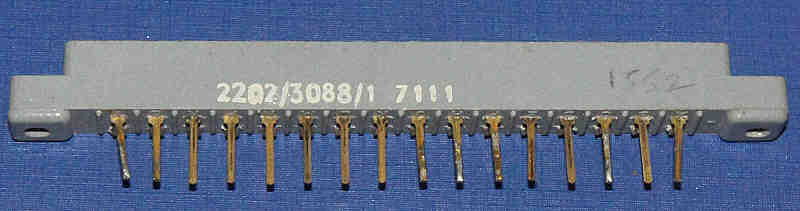

CON1552 Edge Connector Single sided 16 way 0.2" pitch 2202/3088/1
97mm centres, 105mm overall. Grey. 2 only
Used 2.20
CON1553b   Edge Connector Double sided 23 way 0.2" pitch  AMP 9=163244-2
110mm overall
New Old Stock 5.70
Miscellaneous Edge connectors & assemblies

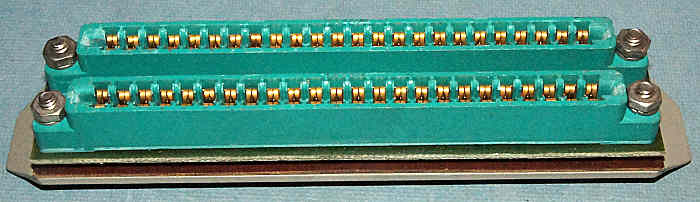

CON1562 Edge Connector Double Sided 2 x 24  way Gold plated 0.155" pitch. 02100-60052
Interconnect for Hewlett Packard 2100 series computers on PCB with aluminium  panel and handles
Used 11.50

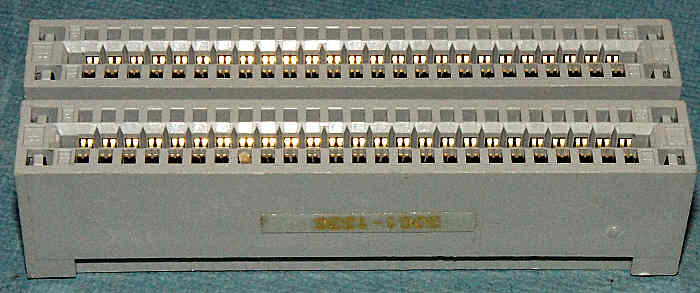

CON1564 Edge Connector Double Sided 2 x 25  way Gold plated 0.1" pitch.  Code 5061-1336
Interconnect  by short 50 way ribbon cable.
Unused 7.60
CON1566 Edge Connector Double Sided 2 x 24  way Gold plated 0.155" pitch. 12966-60003
Test/Interconnect for Hewlett Packard 2100 series computers on PCB
DIN 41612    Indirect Edge Connectors

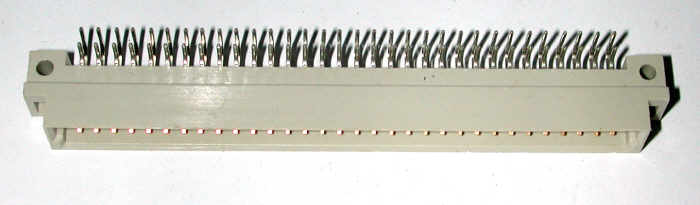

CON1572 2 Row PCB to Rack  64 way Receptacle Male Contacts Connector  RS 467-469. 905-72184C, Harting 0902164 or equivalent.
2-rows  of 32 gold contacts.
Right angled tinned spills for PCB mounting
89mm between mounting holes
New Old Stock 2.20
CON1573 2 row PCB to Rack  64 way Plug Female Contacts Connector  RS 471-525 or equivalent.
2-rows  of 32 gold contacts, with spills for solder or wire wrap for rack/pcb mounting.   Mates with CON1512
Overall length 95mm  Between 2.5mm mounting holes 89mm
Body width 8.05mm  Insertion body 5.9 mm wide 85mm overall 82.8mm into recessed parts.
Body height 11.2mm    Solder spills 13mm
New Old Stock 2.20

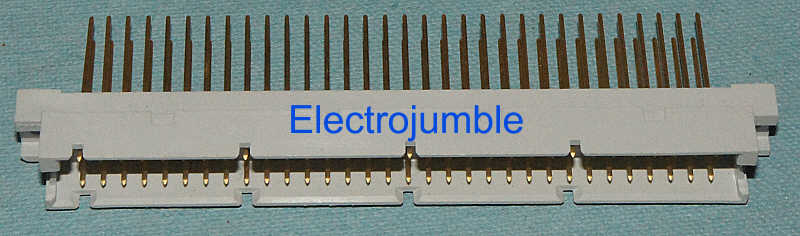

CON1583 3 Row PCB to Rack  64 way Receptacle Male Contacts Connector
3 rows with outer two rows employed.  "A/C" style
2-rows  of 32 gold contacts, with gold plated 13mm spills for solder or wire wrap for rack/pcb mounting.  89mm between mounting holes.  RS476-053 or equivalent
New Old Stock 2.20

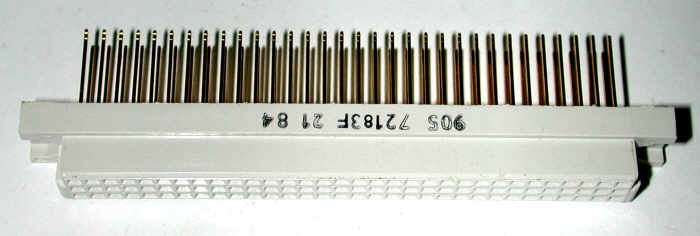

CON1584 3 row PCB to Rack 64 way Plug Female Contacts Connector 905-72183F.
3 rows with outer two rows employed.  "A/C" style
2-rows  of 32 gold contacts, with gold plated 13mm spills for solder or wire wrap for rack/pcb mounting.  89mm between mounting holes.
Equivalent to McMurdo TP-100-3-96,SM,12-SG,
New Old Stock 2.20

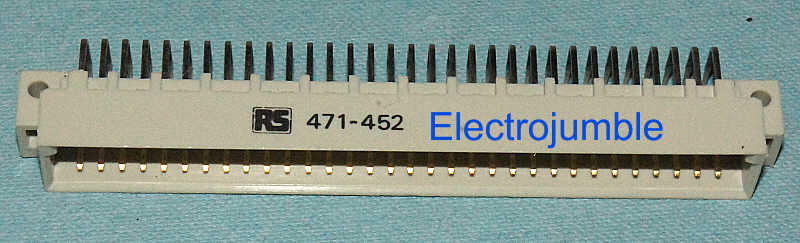

CON1586 3 Row PCB to Rack  64 way Receptacle Male Contacts Connector
3 rows with outer two rows employed.  "A/C" style
2-rows  of 32 gold plated contacts, with Right angle  spills for solder pcb mounting.  89mm between mounting holes.  RS471-452 or RS468-118.
New Old Stock 2.20

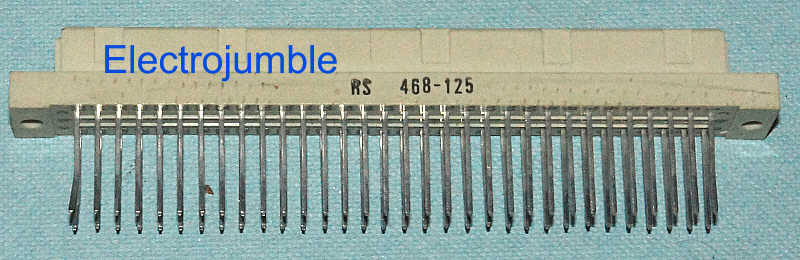

CON1587 3 row PCB to Rack 64 way Plug Female Contacts Connector. RS 468-125
3 rows with outer two rows employed.  "A/C" style
13mm spills for solder or wire wrap for rack/pcb mounting.  89mm between mounting holes.
New Old Stock 1.90

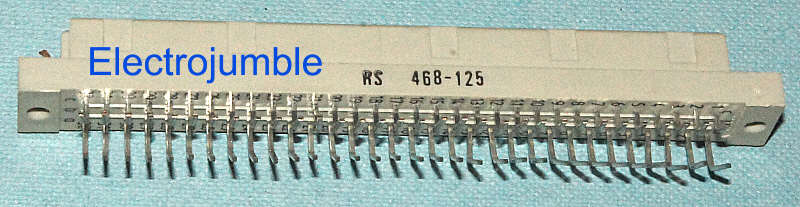

CON1588 3 row PCB to Rack 64 way Plug Female Contacts Connector. RS 468-125
3 rows with outer two rows employed.  "A/C" style
Right angle spills for solder pcb mounting.  89mm between mounting holes.  (Note that these are also marked RS 468-125)
New Old Stock 1.90

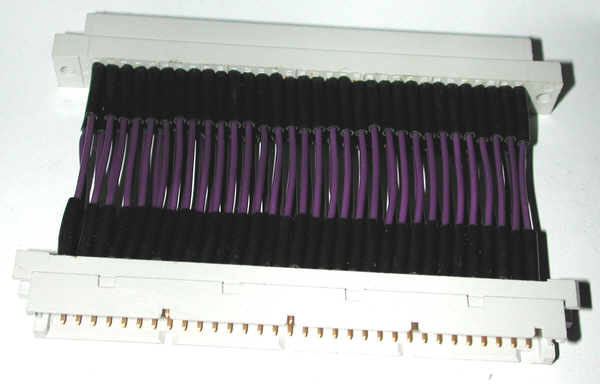

CON1590 64 way DIN 41612 Extender. 3-row with 2 outer rows wired.  "A/C"
With CON1514 and mating plug wired 1 to 1.

Extends reach by approximately 50mm.
New Old Stock 0.250
Indirect Edge Connectors, Other

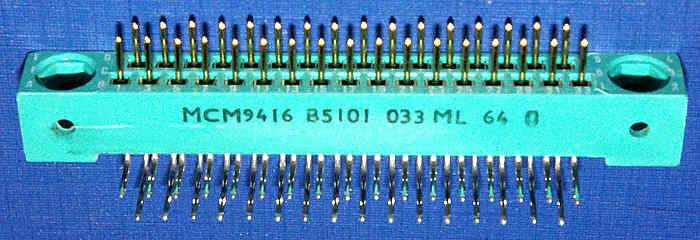

CON1612 Edge Connector 33 way in 2 rows McMurdo  801 series. B5101 033 ML 64 0
Gold plated pins.    NSN 5935-99-227-2604.

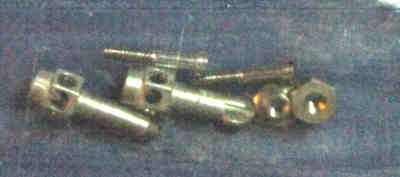

With screws set.   - possibly some storage marks on screw set.
New Old Stock 11.20
FIBRE OPTICAL

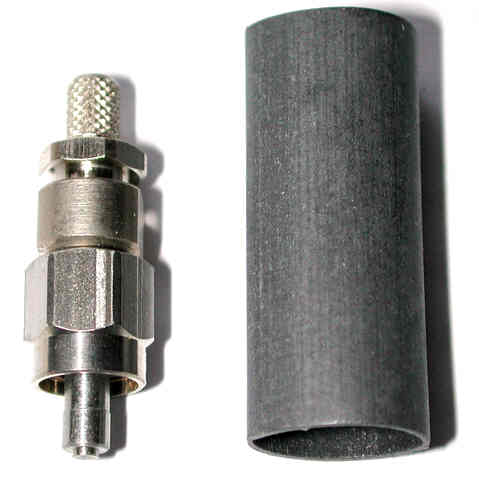

CON1751 CON_FO_RAD.jpg (18505 bytes) Fibre Optical Cable Connector. Radiall  F705 011 025.
Sealed bags with shrink sleeve.
New Old Stock 1.50

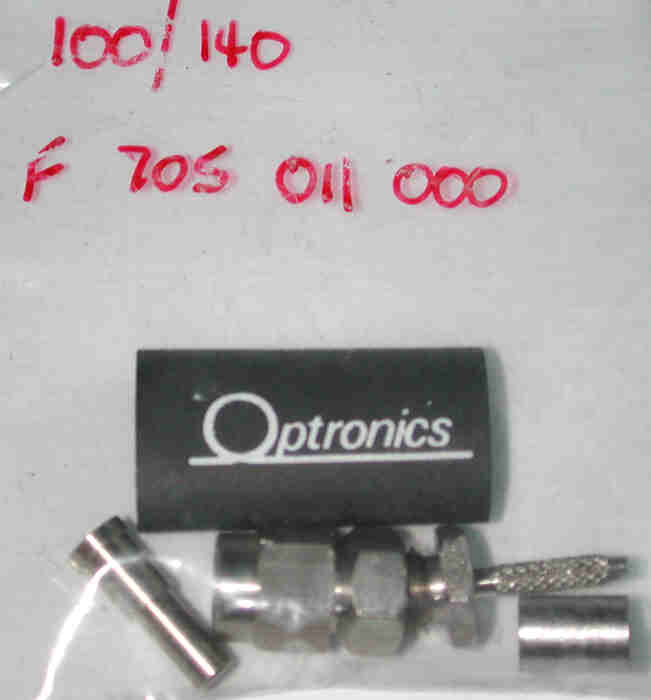

CON1760 Fibre Optical Cable Connector. Radiall  F705 011 000
100/140µm
New Old Stock 1.95

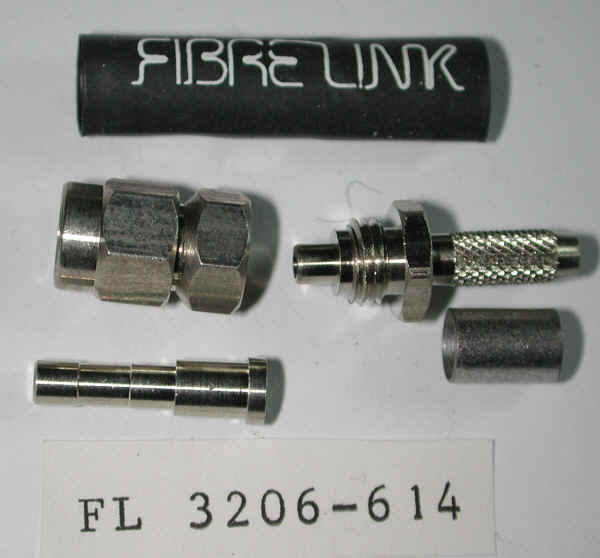

CON1764 Fibre Optical Cable Connector. FL 3206-614
with shrink sleeve.
Lee-Tech 140µm.  <4dB
New Old Stock 1.95

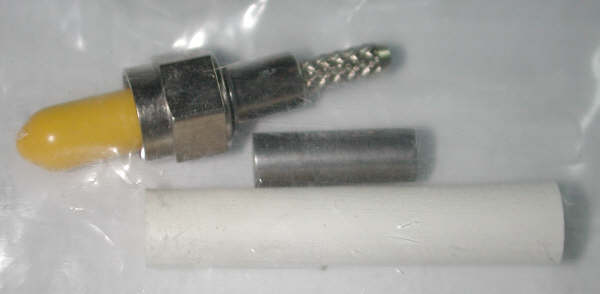

CON1766 Fibre Optical Cable Connector. Optronics OFTI. OPT20 406 14
100/140µm Low loss <2dB
New Old Stock 2.95

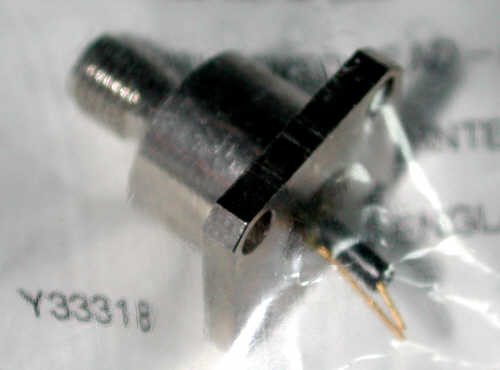

CON1781 Fibre Optic Emitter Unit.  Belling-Lee L2822/15 New Old Stock 5.95

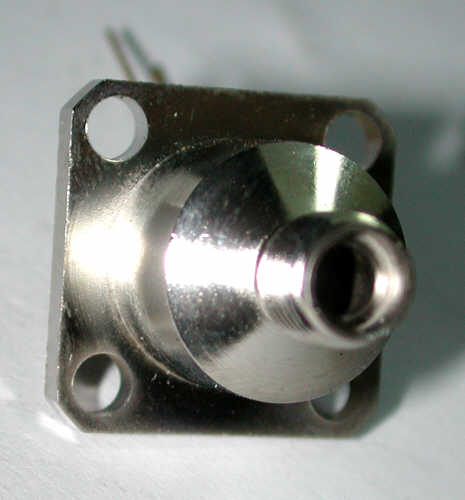

CON1782 Fibre Optic Receiver Unit.  Belling-Lee L2823/01 New Old Stock 5.95

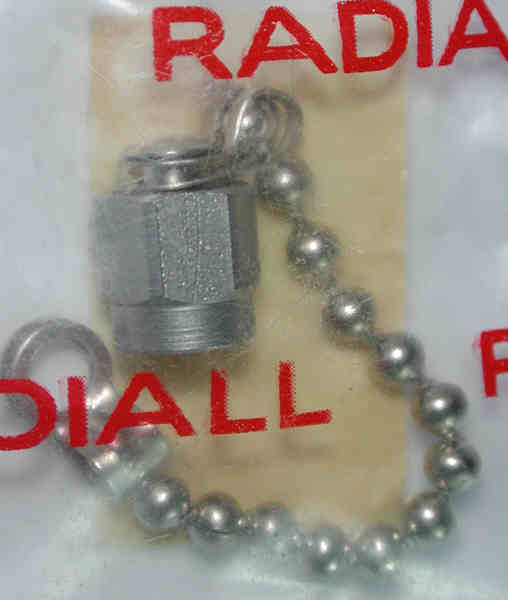

CON1790 Fibre Optic Cover Cap with captive chain for receiver or transmitter. New Old Stock 0.95
Some other FO items available
PCB, RIBBON & MISCELLANEOUS

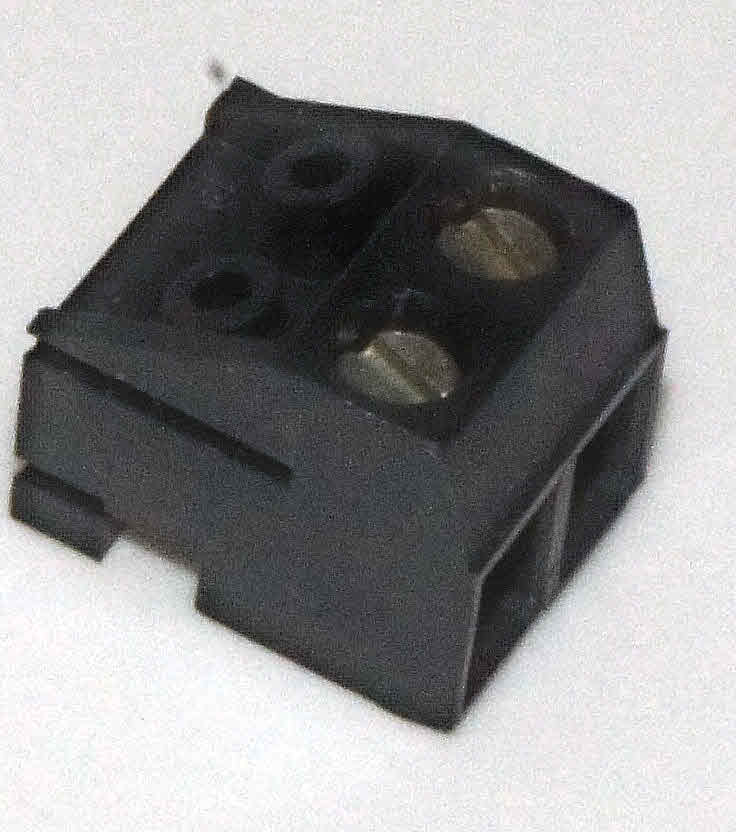

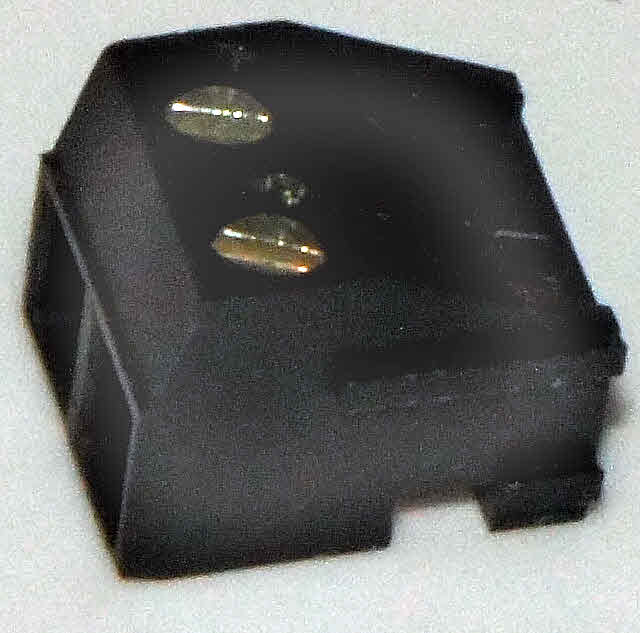

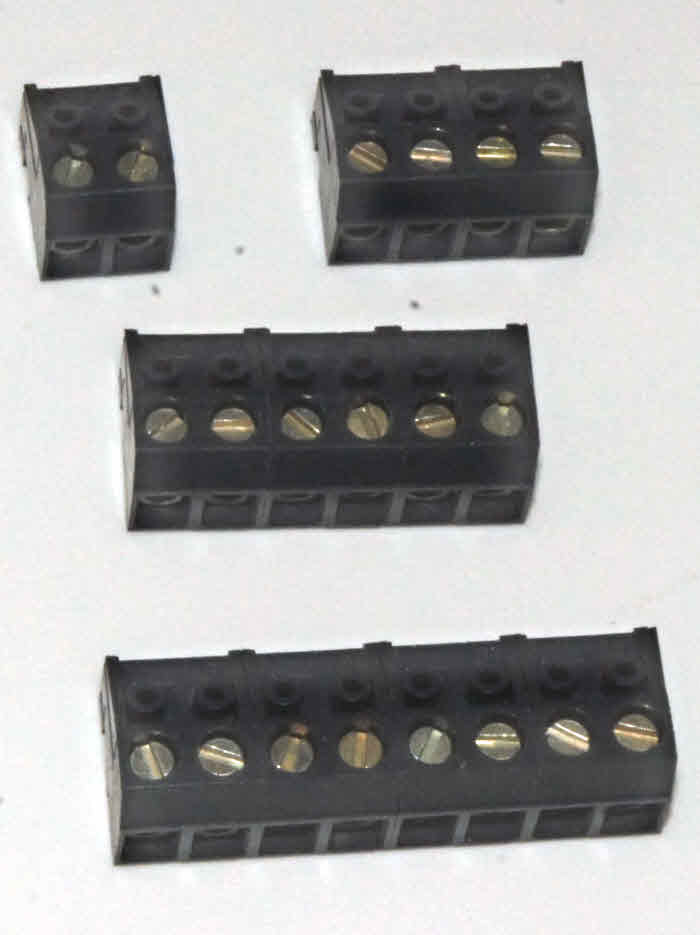

CON7173 Pluggable 2 way screw terminal block. Camden Boss 1302/2 , PTR Harman AK130/2, Part no 5013002001 G. Rated 10A, 250V ac.
2 way units that can be assembled into multi-way interlocking blocks.
See data sheets HERE and HERE
Can be vertically or horizontally mounted - the blocks have entries at both rear and under.
They plug into headers with pins spaced at 5mm. (Not available here but see RS/Farnell. Alternatively 17SWG wire fits the spring sockets)
  Examples of multi-way assemblies from basic 2-way unit
New Old Stock


100+
0.12 ea


0.08 ea

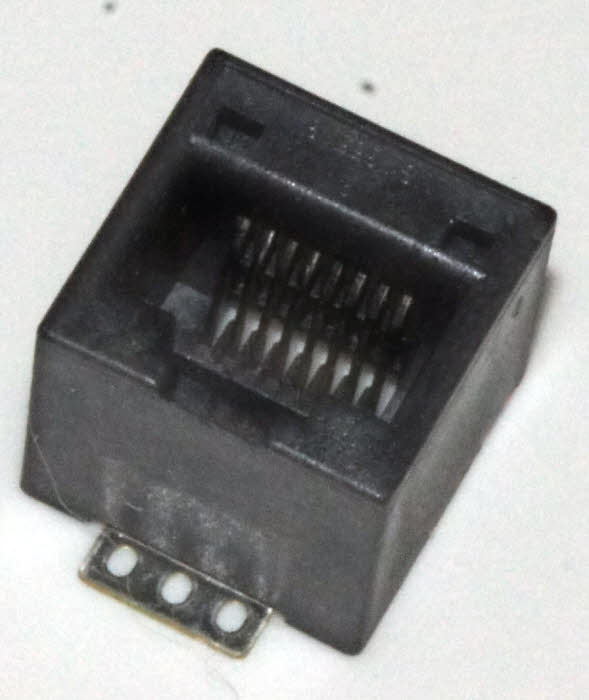

CON7175 RJ45 Socket.  Molex 0855135013.   Surface mount.  All 8 contacts available.
See data sheet HERE.
New Old Stock

10+
0.25


0.20

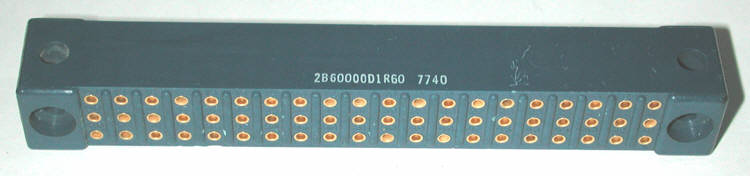

CON7181 60 way Taper Pin Block. Ultra Electronics Dowty UECL 2B60000D1R60,
Nylon. 122 x 16 x 18mm
New Old Stock 11.00

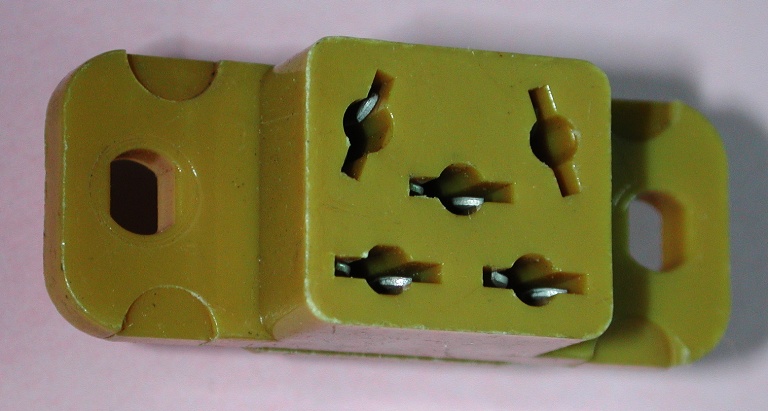

CON7192 5 Way  Fixed Socket - mates with above.   42 x 16 x21mm. Unused old stock

2.90

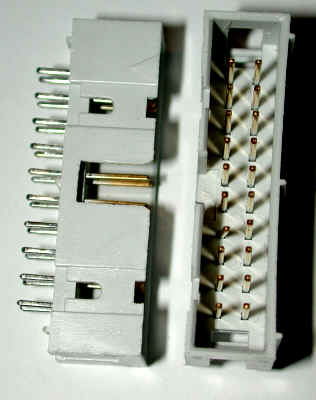

CON7205 20way header.jpg (13879 bytes) 20 way Header Connector Unused old stock

0.40

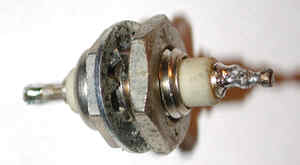

CON7306 Feed_thro.jpg (5256 bytes) Feed through insulator. Recovered from equipment.  22mm long for 6mm hole and panel up to 4mm thick. Up to 400V. Used 0.05 or 10 for 0.40
CON7315 . Stand Off Insulator, PTFE. RS type 433-876
3kV working voltage. To fit 4mm hole in 16-22 SWG panel.
1pF capacitance approx.  Silver plated terminal.
New Old Stock 0.40

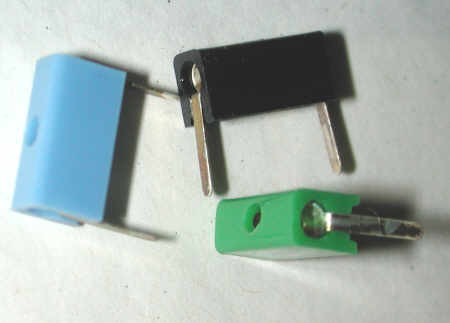

CON7412 PCB Test Point Connector.   Matrix Board Socket,  10mm long, 5mm above board and 4mm wide. Top and side entry for plug.  Approx 1.7mm plug required. Various colours.   Unused New Old Stock 0.10
5 for 0.25

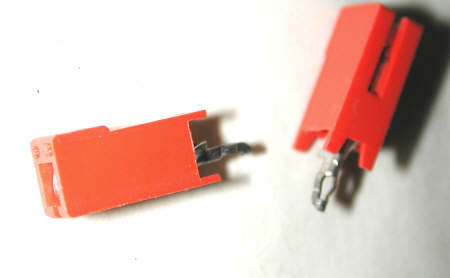

CON7413 PCB Test Point Connector - Vertical.  Matrix Board Socket,  10mm high above board and 5 x4mm wide. Approx 1.2mm plug required.  Orange only New Old Stock 0.10
5 for 0.25
TERMINALS - Panel, Plugs and Sockets

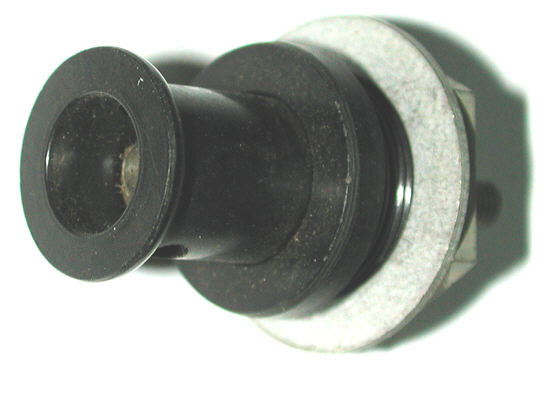

CON7451 Quick Release Panel Connector.
As used for test and on some Radio equipments.
Press top 15mm diameter, flange 24mm. Mounting hole 19mm diameter, 50mm long overall.
With nut and washer.  For cables up to about 3mm diameter.
Old Stock 1.80

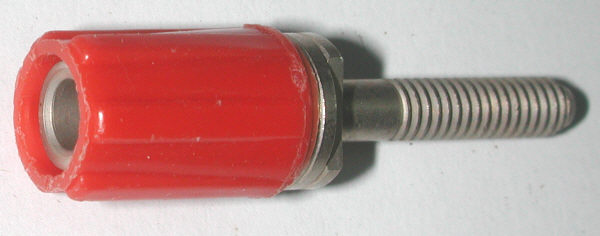

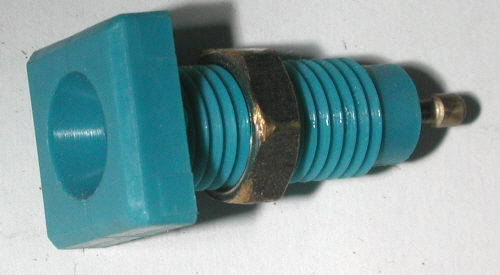

CON7475 Panel Socket 4mm  Red only no bushes/nuts. OK for insulated panels. New Old Stock 0.10

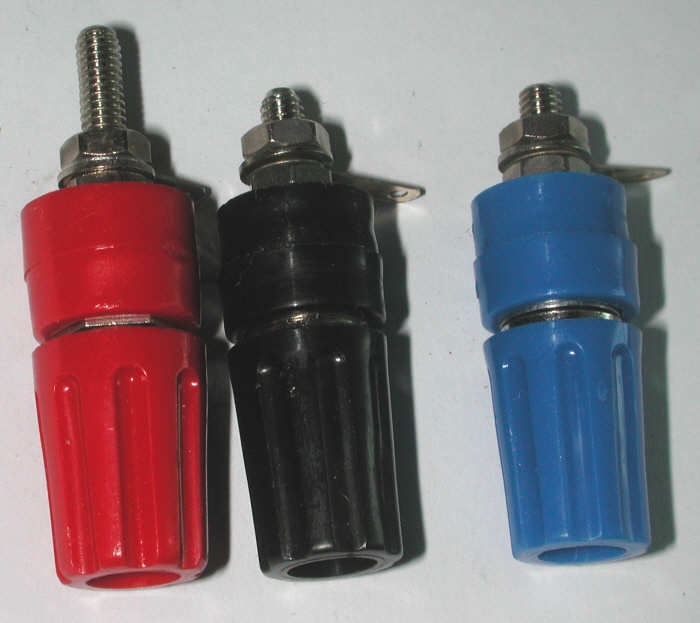

CON7476 Panel Socket 4mm  RS 423-nnn series
Complete - colours as available white, black, red, green, blue, yellow
New Old Stock 1.00
CON7471 Panel Socket 4mm.   Light Blue New Old Stock 0.20
CON7472 As above Panel Socket 4mm.   A few other colours available New Old Stock 0.40

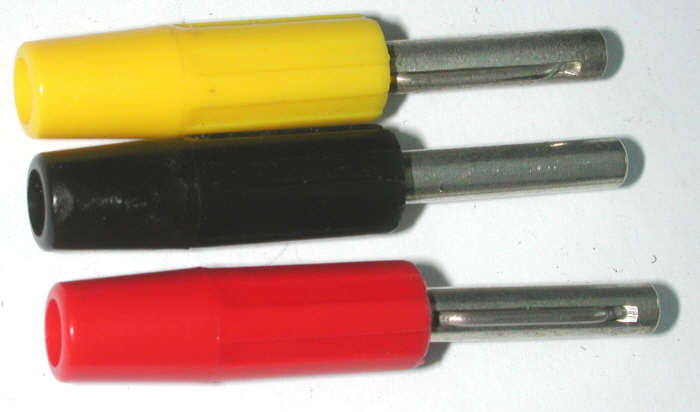

CON7481 Banana Plugs 4mm.  R 444-nnn series Few colours New Old Stock 0.55

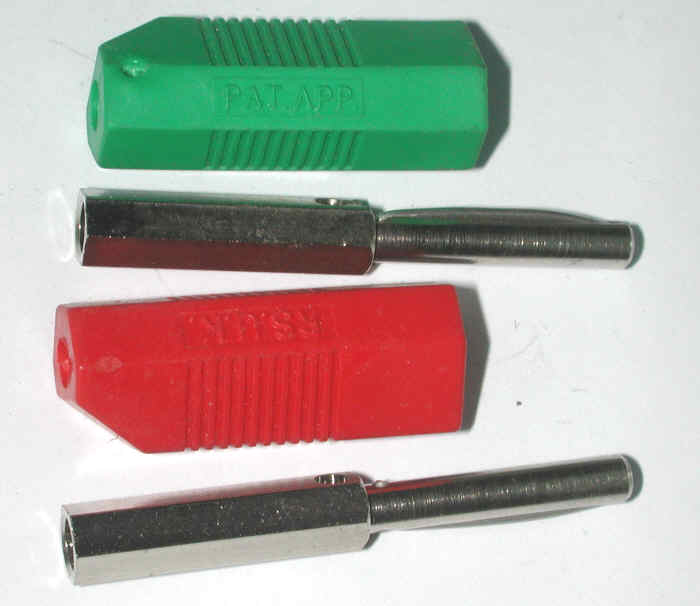

CON7482 Stackable Plugs 4mm Few colours. R 444-nnn series New Old Stock 0.60

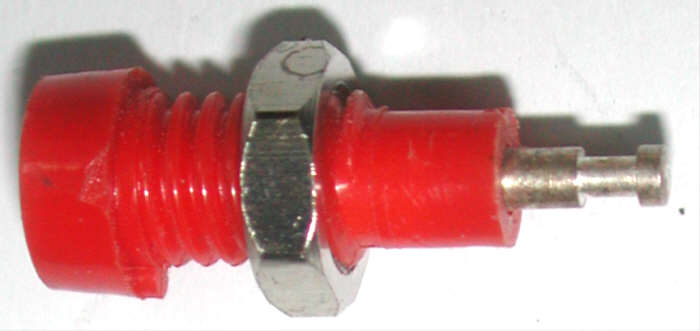

CON7491 Panel Socket 2mm.  RS types 444-444 (Red), 444-466 (Yellow), 444-438 (Green), 444-416 (Black), 444-422 (Blue), 444-450 (White)  New Old Stock 0.65
CON7495 Panel Socket - Miniature 1mm.  Radiospares.  Black or Red only New Old Stock 0.55

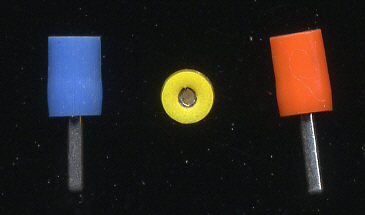

CON7497 Oxley_Panel_Skt.jpg (12686 bytes) Oxley Miniature PTFE Panel Socket.  30S/093 series. Silver plated. Push fit into panel hole. .
Colours as shown plus a few pink, palladium plated.

Body 3.3mm diameter.  See HERE for manufacturer's current data with dimensions etc.
New Old Stock 0.10

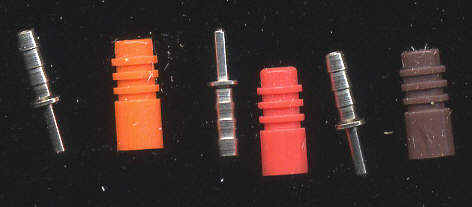

CON7498 Oxley_Plug.jpg (11766 bytes) Oxley Plug. 30P/093 series. Colours only as shown, to fit above sockets.
Body 3.2mm diameter, 7.5mm long. Pin 0.9mm diameter, Palladium plated.
See HERE for manufacturer's current data.
New Old Stock 0.10

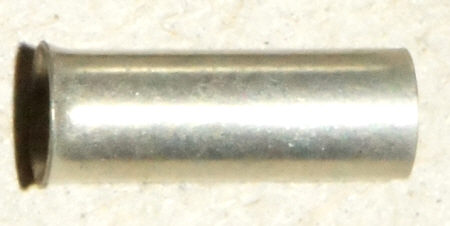

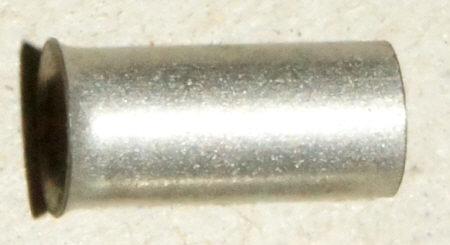

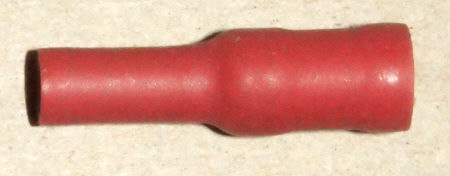

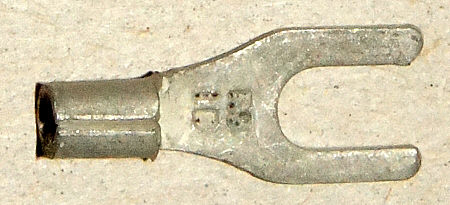

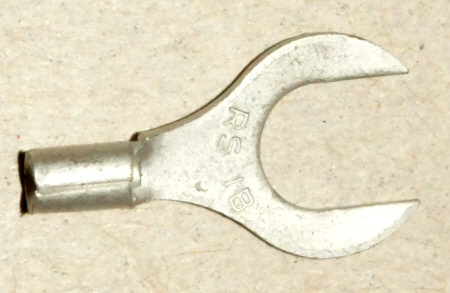

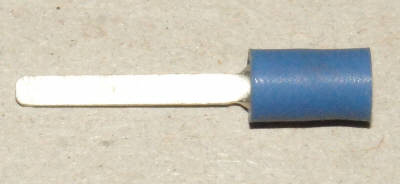

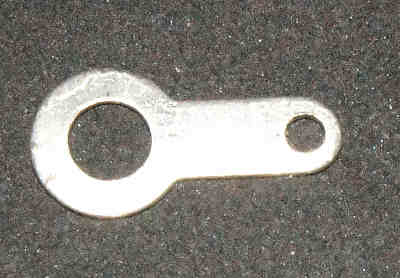

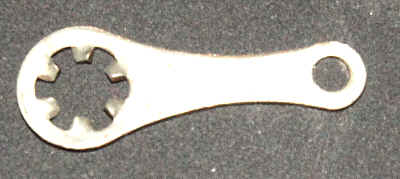

CRIMP TERMINALS FERRULES and SOLDER TAGS

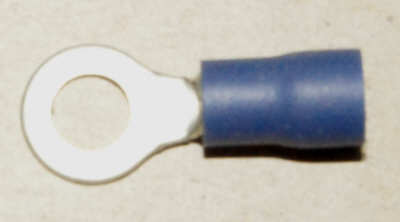

Crimp Connectors - Colour Code
Yellow for Wires 2.5mm2 to 6.5mm2
Blue for Wires 1.5mm2 to 2.5mm2
Red for Wires 0.5mm2 to 1.5mm2

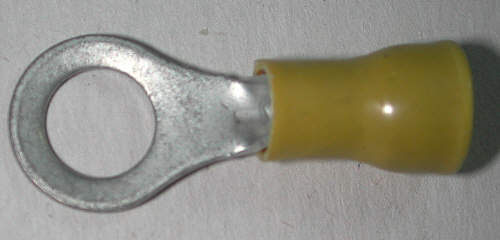

CON7512  Crimp Terminal, Yellow.   Ring - 8mm hole 34mm overall. Old Stock 0.02
CON7514 Insulated Crimp Connector - Ring New Old Stock 0.07

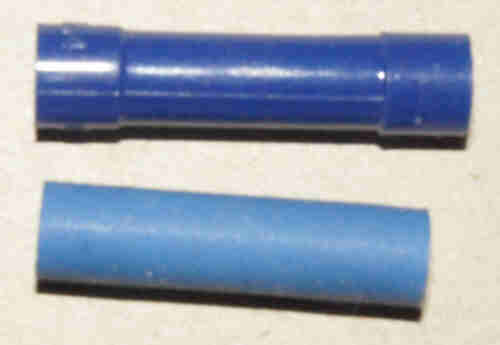

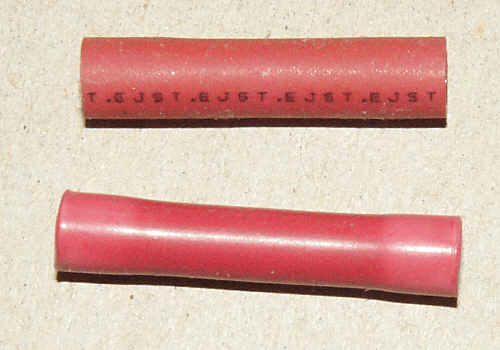

CON7522 Insulated Crimp Connector Butt type (2 alternative types shown) New Old Stock 0.07
CON7523 Insulated Crimp Connector Butt type RS 532-771 or equivalent (2 alternative types shown) New Old Stock 0.08

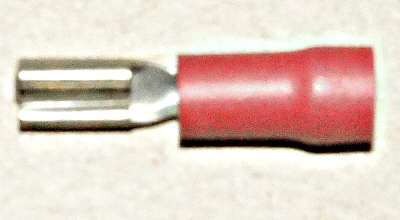

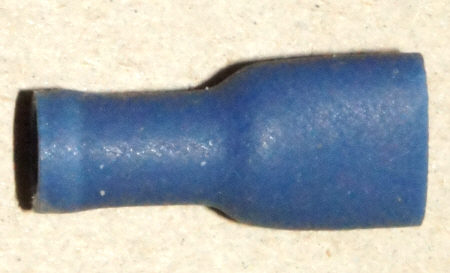

CON7532 Insulated Crimp Connector - Slide-on Receptacle 0.11 inch. RS type 532-844 New Old Stock 0.15

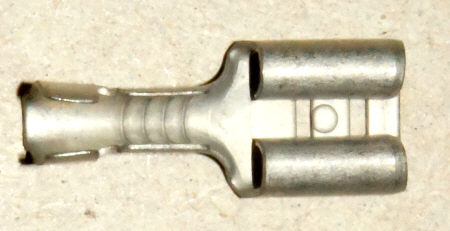

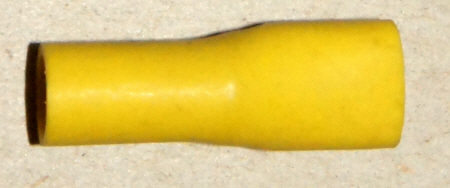

CON7531 Insulated Crimp 0.25" 6.35mm Connector - Slide-on Receptacle  RS type 534-339 New Old Stock 0.14
CON7532 Insulated Crimp 0.25" 6.35mm Connector - Slide-on Receptacle New Old Stock 0.14

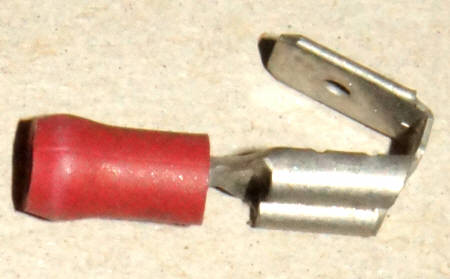

CON7534 Insulated Crimp 0.25" 6.35mm Piggy-Back Connector - Slide-on Receptacle/Blade  New Old Stock 0.09
CON7536 Crimp 0.25" 6.35mm Connector - Slide-on Receptacle New Old Stock 0.09

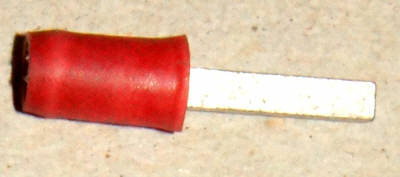

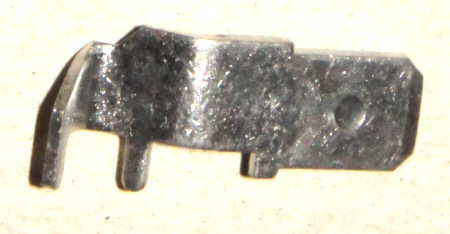

CON7537 PCB 0.25" 6.35mm Connector - Slide-on Blade New Old Stock 0.09
CON7551 Insulated Crimp Bullet Plug New Old Stock 0.14
CON7552 Insulated Crimp Bullet Socket New Old Stock 0.14
CON7554 Insulated Crimp Small Blade  New Old Stock 0.08
CON7554 Insulated Crimp Small Blade  New Old Stock 0.08
CON7562 Crimp/Solder Spade New Old Stock 0.02
CON7564 Crimp/Solder Spade New Old Stock 0.03
CON7572 Crimp Ferrule  4.5mm internal diameter New Old Stock 0.02
CON7574 Crimp Ferrule  3.5mm internal diameter New Old Stock 0.02
CON7582 Solder Tag 4BA New Old Stock 0.03
CON7584 Solder Tag 4BA New Old Stock 0.03
CON7585 Solder Tag  6BA New Old Stock 0.03
CON7586 Eyelet Tag 4BA New Old Stock 0.04
CON7587 Eyelet Tag 6BA New Old Stock 0.04
Multi-way Rectangular Connectors
CON7620 AMP Connector block 202515-1.  As used in NIM (Nuclear Instrumentation Module) Equipment.  20 x 67 x 24mm..  Contacts available at extra price.  New Old Stock 2.50
CON7622 AMP Connector shroud 202394-2.  For use with above type connectors New Old Stock 1.50
  MRAC and MRE Connectors.  Various configurations, hoods and pins available.
New and Ex equipment.
Please ask. From 1.70

CON7642 18 way Ultra Electronics Dowty UECL, 2B 11001A18  with hood etc.
22 x 12mm wide, 40mm overall. Compatible with Winchester MM22 series
New Old Stock
Bagged
12.50
CON7644 50 way Winchester-Continental Micro Miniature MM22 series Free Plug with hood
14 x 36mm, 55mm overall.  Gold-plated contacts and guides
New Old Stock
Bagged
18.50
CON7645 50 way Winchester-Continental Micro Miniature MM22 series Socket
13 x 36mm. Gold-plated contacts and guides
Unused 14.80
CON7651 McMurdo 700 series 11 way free (line)  socket.
Side entry with cable clamp.  35 x 16 x 29mm.
New Old Stock
Bagged
4.50
CON7656 . McMurdo Micronector 26 way plug MP126
Moulded in Nylon PF. 750V working
Unused boxed, but may have tarnishing.
Unused 2.80
CON7657 McMurdo Micronector 26 way socket MS126
Moulded in Nylon PF. 750V working
Unused boxed, but may have tarnishing.
Unused 2.80
CON7659 McMurdo Micronector 34 way plug MP134.
Moulded in Nylon PF. 750V working
Unused boxed, but may have tarnishing.  51 x 20 x 21 mm.
Unused 2.80
CON7660 McMurdo Micronector 34 way socket MS134.
Moulded in Nylon PF. 750V working
Unused boxed, but may have tarnishing.  51 x 20 x 21 mm.
Unused 2.80
. . McMurdo Micronectors  26 way and 150 way - a few available, .
Unused boxed, but may have tarnishing.
Unused 2.80
CON7675 McMurdo  "Standard" 8 way socket. XS8
Moulded in Nylon PF. 1000V working 3A max per contact.
38 x 15 x 17mm.
Unused 2.20
CON7676 McMurdo  "Standard"  8 way plug.  XP8
38 x 15 x 20mm.
Unused 2.20
CON7677 McMurdo  "Standard"  12 way plug. XP12
38 x 22 x 17mm.
(Picture shows a socket which is no longer available)
Unused 2.80
CON7705 . McMurdo Red range 8 way hood for cables New Old Stock 5.00
CON7708 McMurdo Red range 8 way module plug RP8.   Equivalent to RS447-061 New Old Stock 3.00
CON7713 24 way module plug   McMurdo Compatible
RS 467-009 RC4100-24Por Amphenol 26-4100-24P  Blue
One only remains plus one used at half price.
New Old Stock 9.50

CON7735  One only 24 way plug
They are not compatible with the Red Range of McMurdo.
New Old Stock 8.50
    For some data on the Amphenol 26 series see HERE.
    Belling Lee Unitor Pattern 102 unitors.
8, 12, 18 and 25 way versions also available

CON7741  Belling Lee Unitor Pattern 102 L653/P.  4 pole Male Used 9.00
CON7742  Belling Lee Unitor Pattern 102 L653/S.  4 pole Female Used 9.00
CON7743  Belling Lee Unitor Pattern 102 L653/C3. Cable outlet for 4-pole unitor Used 9.00
CON7744  Belling Lee Unitor Pattern 102 L653/R3. Shroud retainer for 4-pole unitor Used 9.00
CON7761 See CON7764 below Belling Lee Unitor Pattern 102 L653/P.  12 pole Male Used 12.00
CON7764
Belling Lee Unitor Pattern 102 L653/R3. Shroud retainer for 12-pole unitor

The type b is shown fitted with a  12 pole Male
Used
9.00 to 12.00
CON7800 "D" Type Connectors.   9 15 25 37 and 50 way solder cup plugs and sockets.
Various hoods, retainers and makes.
These connectors can be chassis mounting or used with hoods for cable use.

Either plastics and metal hoods will be supplied. If you have a preference, please state.

Some good used items may be available at 1/3 or 1/2 of stated prices.

Some IDC types available, please ask.
New old stock From 0.10
CON7810 . 9 way D Socket. New old stock 0.30
CON7811 9 way D Plug. New old stock 0.30
CON7812 . 9 way D Hood. New old stock 0.30
CON7813 9 way D Chassis Hood Retainer.    Metal type - others available New old stock 0.30
CON7820 . 15 way D Socket. New old stock 0.40
CON7821 . 15 way D Plug. New old stock 0.40
CON7822 . 15 way D Hood. New old stock 0.30
CON7823 . 15 way D Chassis Hood Retainer.    Metal type - others available New old stock 0.30
CON7830 25 way D Socket. New old stock 0.45
CON7831 25 way D Plug. New old stock 0.45
CON7832 25 way D Hood.   Metal type -  plastic type also available. New old stock 0.40
CON7833 . 25 way D Chassis Retainer.     New old stock 0.40
CON7840 . 37 way D Socket. New old stock 1.70
CON7841 . 37 way D Plug. New old stock 1.70
CON7842   37 way D Hood New old stock 0.90
CON7842a .
37 way D Hood Cannon with slide locking bar . New old stock
4.50
CON7843 . 37 way D Chassis Hood Retainer.     New old stock 0.90
CON7850 . 50 way D Socket. New old stock 2.10
CON7851 . 50 way D Plug. New old stock 2.10
CON7852 . 50 way D Hood. New old stock 1.60
CON7853 . 50 way D Chassis Hood Retainer.     New old stock 1.60

"JONES" CONNECTORS  Various vintage types available - please enquire.
CON7881 Cinch 6 way chassis Socket.  Flat blade "Jones" style with crackle finish mounting plate.  44mm (1.75") between centres, 31mm diameter.  New old stock 5.60
CON7882 Small "Jones" 6w free plug. Few only Ex Equip 3.50
CON7883 Small "Jones" 6w free socket. Few only Ex Equip 3.50
CON7884 Small "Jones" 6w fixed socket. Offset Contacts  Few only Ex Equip 3.50

Other Rectangular Connectors
CON7913 Tuchel Kontakt 4 way Heavy duty.  Fixed Plug, female contacts
54mm long x 17mm x 44mm. 48mm fixing centres.
Unused 8.00
CON7914 Tuchel Kontakt 4 way Heavy duty.  Free Socket, male contacts
54mm long x 17mm x 37mm.
Unused 7.00
CON7922 3 way power connector No 4040A.   Free socket, male blade contacts.
44 x 21 x 58mm.  Some ageing of diecast body. 2 only available
Used 5.00
CON7951 9 way ITT Cannon Micro-Connector Socket MDB1 9SHOO1
With attached leads.  14mm between centres, 20mm overall.
 2 only available
Mating connector also available. See below
Unused 9.00
CON7952 9 way ITT Cannon Micro-Connector Socket MDB1 9PHOO1
With attached leads.  14mm between centres, 20mm overall.
Unused 6.00
CON7960   Hypertac Connectors - various types of LF/power connectors and blocks available.
CON7963
136 way Hypertac Connector.   8 connector blocks of 17 pins.  NSN 1260-99-527-9826
232mm overall length x 32mm wide.
Unused 26.00
CON7964 See above 19 pin Hypertac connector block, as CON7963. Unused 4.50

Home Up Extender_Boards Military Industrial Coax Rectang, Test, PCB Mains Filter Audio

Information Page

Updated March 24, 2018
